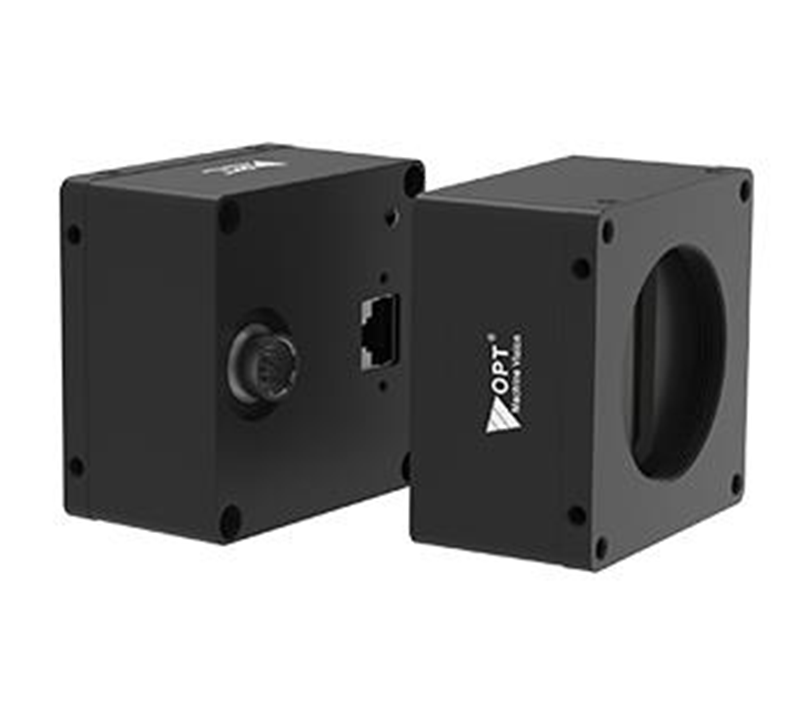

Industrial Line Scan Cameras OPT-CLM102-G49-04
- Support brightness enhancement,gamma correction and other ISP functions.
- Supprort PRNU correction in target bright field.
- Support various image formats of output data.
- Support DC12V-24V wide-range power supply.
- Compatible with GigE Vision protocol and GenICam standard.
- Conform to CE、FCC、ROHS certification.
Features
| Model | OPT-CLM202-G49-04 |
|---|---|
| Resolution | 2048 × 2 |
| Pixel Size(μ㎡) | 14*14 |
| Sensor Type | Line |
| Line Frequency（KHz） | 49 |
| Interface | GigE |
| Lens Mount | M42×1，FBL12.00mm |
| Exposure Time | 8μs~100ms |
| Image Format | Mono8/10/12/10Packed/ 12Packed |
| Dynamic Range(dB) | 66dB |
| Power Supply | DC 12~24V power supply via 12-pin Hirose connector |
| Weight | 0.245kg |
| Power Consumption（W） | 4.5W |
| Temperature | Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO | 12-pin Hirose connector provide power supply and I/O,2 differential input,2 single-ended input,1 GPIO |
| Dimensions | 62mm×62mm×35.3mm |
| Conformity | GigE Vision and GenlCam |
| Mono/Color | M |
