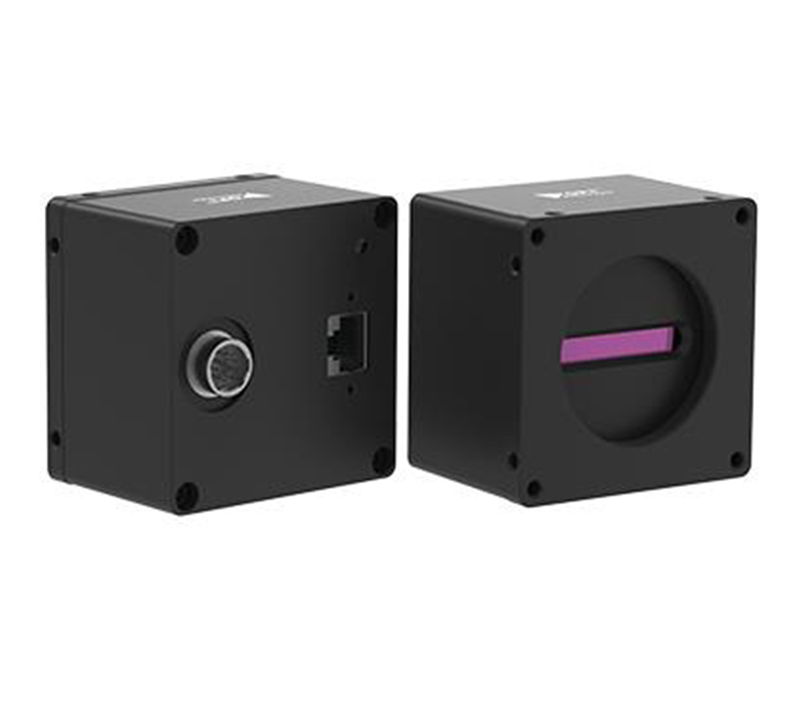

Industrial Line Scan Cameras OPT-CLM204-G28-0401
- Support for brightness enhancement,gamma correction and ISP functions.
- Support the bright field correction of the target brightness.
- Support multiple image data format output.
- Support for DC12V-24V wide-voltage power supply.
- Compliance with CE,FCC,RoHS certification.
Features
| Model |
OPT-CLM204-G28-0401 |
| Resolution |
4096 × 2 |
| Pixel Size(μ㎡) |
7*7 |
| Sensor Type |
Line |
| Line Frequency（KHz） |
28 |
| Interface |
GigE |
| Lens Mount |
M42*1 |
| Exposure Time |
8μs~100ms |
| Image Format |
Mono8/10/12/10Packed/ 12Packed |
| Dynamic Range(dB) |
66dB |
| Power Supply |
DC 12-24V power supply via 12-pin Hirose connector |
| Weight |
260g |
| Power Consumption（W） |
4.5W |
| Temperature |
Storage temperature：-30℃~+80℃；Operating temperature：-30℃~+50℃ |
| GPIO |
3 differential input, 1differential output, 1 high-speed optocoupler single-end input and 1 GPIO |

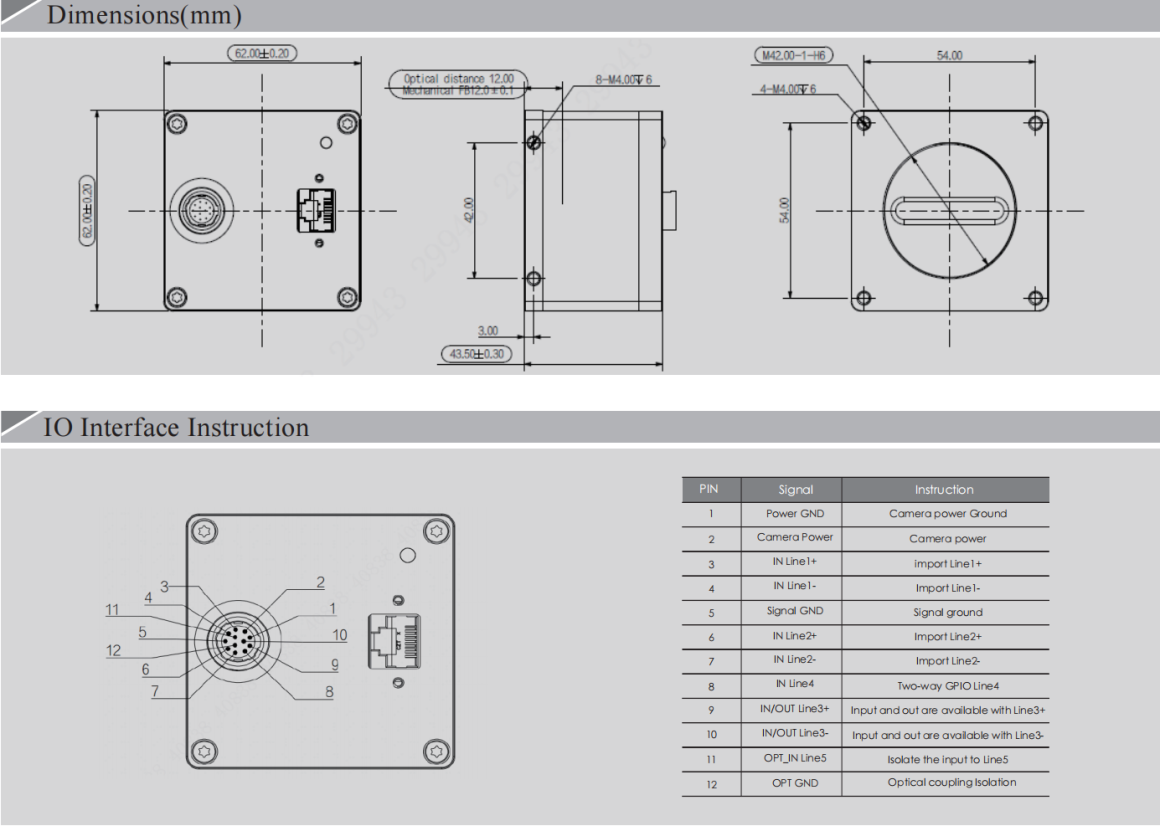

| Dimensions |
62mm*62mm*43.5mm( Not including rlear case connector) |
| Mono/Color |
M |
