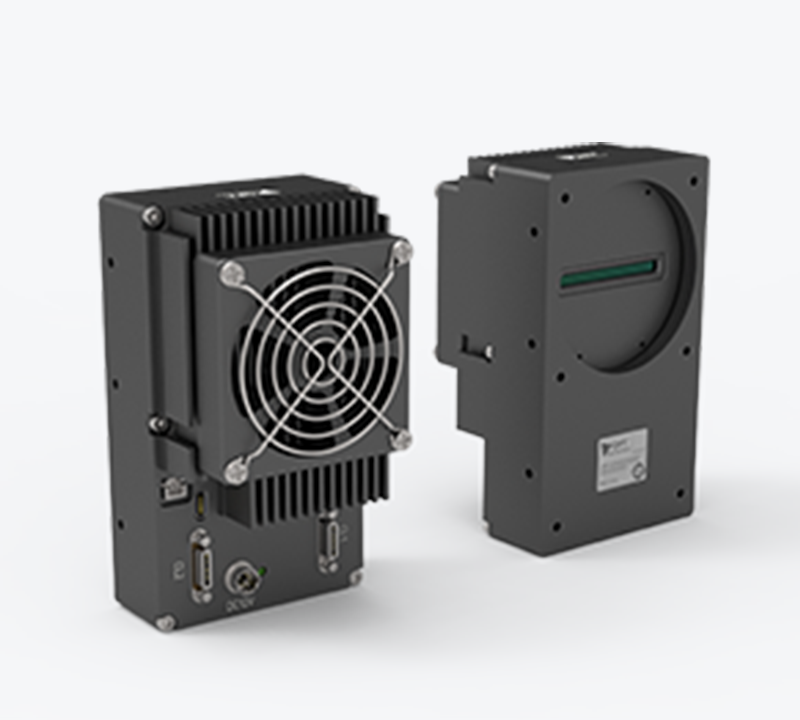

Industrial Line Scan Cameras OPT-CLM808-L100-17
- 8,320*8 Pixels, 5 x 5 μm.
- In 1,4 up to 8 Lines Integration.
- Up to 100KHz Line Rate.
- High sensitivity and Low noise.
- Regions of Interest
- FFC / LUT.
- True exposure control.
- Carema Link interface.
Features
| Model |
OPT-CLM808-L100-17 |
| Resolution |
8320 × 8 |
| Pixel Size(μ㎡) |
5*5 |
| Sensor Type |
Line |
| Sensor |
CMOS |
| Line Frequency（KHz） |
100 |
| Interface |
Camera Link (SDR) |
| Lens Mount |
M72×0.75/F Mount (optional) |
| Exposure Time |
3μs - 63997μs |
| Gain(dB) |
1x-4x（analogue gain）1x-8x（digital gain） |
| Dynamic Range(dB) |
≥71dB |
| Power Supply |
Hirose HR10A (6-pin) DC 12V(±10%)3A |
| Power Consumption（W） |
16 W |
| Temperature |
Storage Temerature :-20 ~ 75℃;Operating Temperature :0~65℃ |

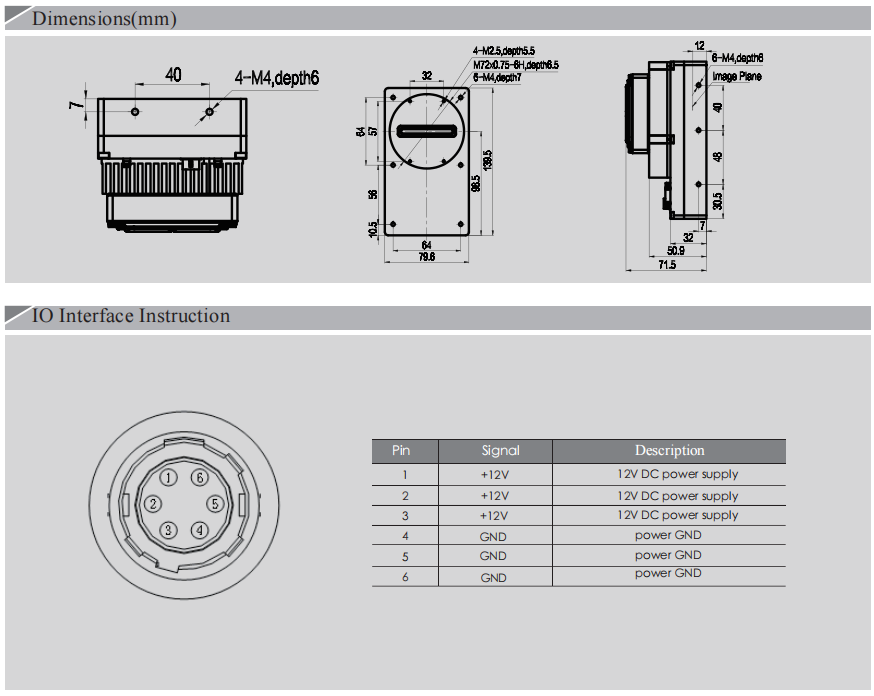

| Dimensions |
79.6mm(W) x 139.5mm(H) x 71.5mm(D) |
| Mono/Color |
M |
