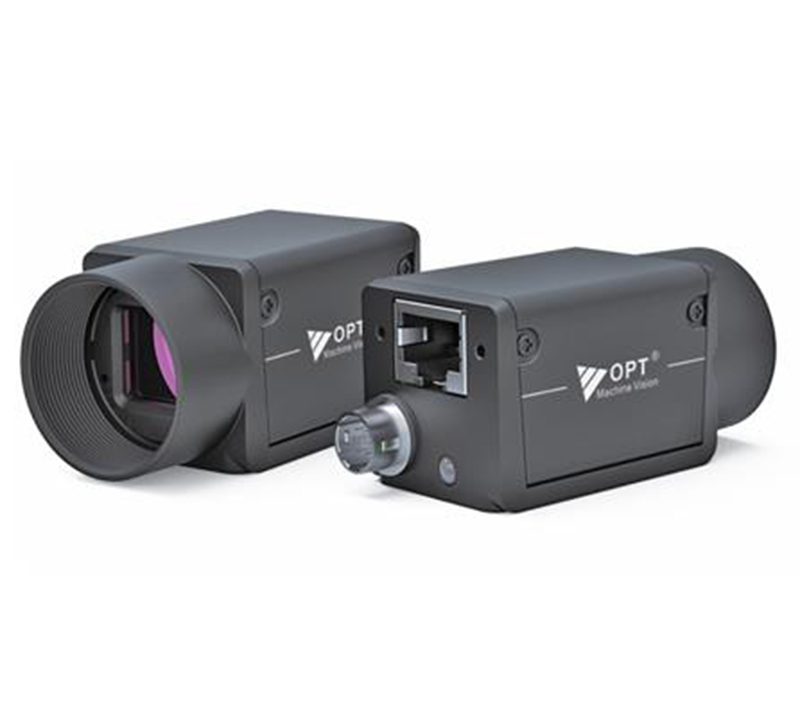

Industrial Rolling Shutter Cameras OPT-CC1-M020-GR1-01
- Adopts low consumption platform with stable performance.
- Supports wide dynamic range, noise reduction and sharpness functions.
- Customized filter with strong anti-interference ability is optional.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
| Model |
OPT-CC1-M020-GR1-01 |
| Resolution |
1920x1080 |
| Pixel Size(μ㎡) |
2.9 x 2.9 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Sensor |
IMX290 |
| Frame Rate(FPS) |
56 |
| Sensor Format |
1/2.8” |
| Interface |
GigE PoE |
| Lens Mount |
C |
| Exposure Time |
64 μs to 130 ms |
| Image Format |
Mono 8 |
| Gain(dB) |
0 dB to 24 dB |
| Dynamic Range(dB) |
90 dB |
| Power Supply |
9 VDC to 24 VDC, supports PoE |
| Weight |
Approx. 100 g (0.2 lb.) |
| Power Consumption（W） |
Typ. 2.1 W@12 VDC |
| Temperature |
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| GPIO |
6-pin connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |

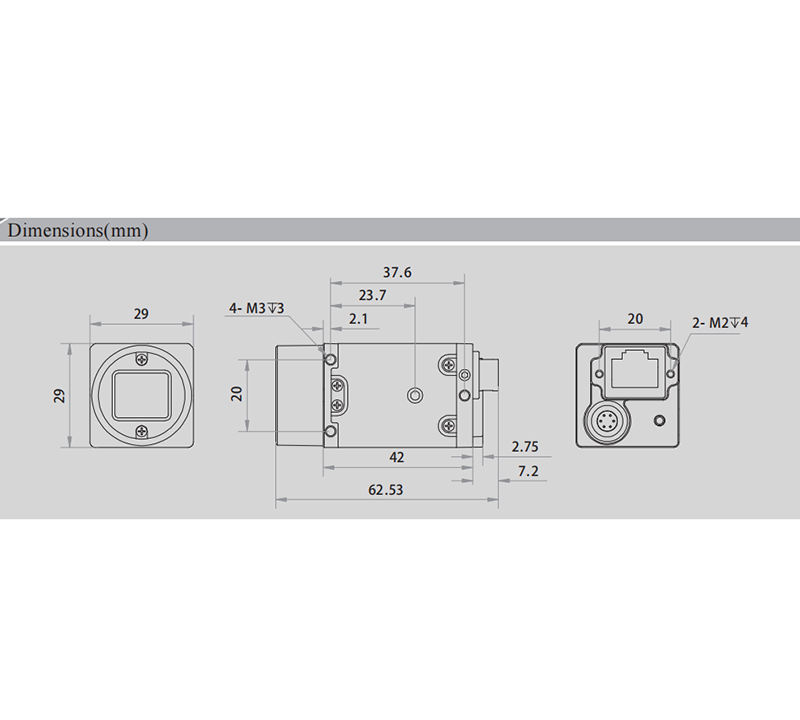

| Dimensions |
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Mono/Color |
M |
