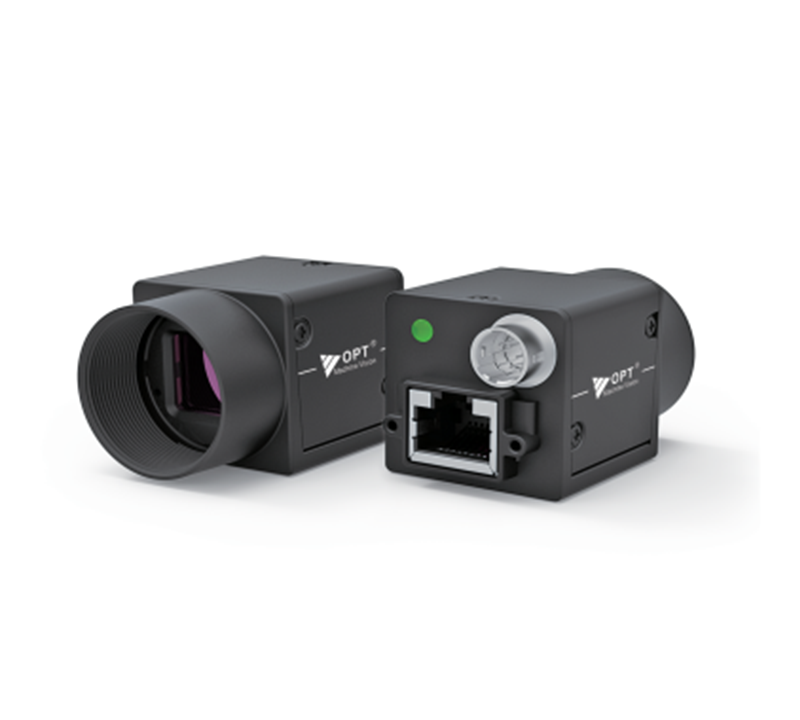

Industrial Rolling Shutter Cameras OPT-CM500-GL-04
- 128MB on-board cache for data transmission or image resend.
- Support Software Trigger/Hardware Trigger/Free Run Mode.
- Support ISP functions including ，Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Color cameras support interpolation, white balance, color.
- conversion matrix, chroma, saturation, etc.
- Support multiple image data formats output/ROI/Mirror, etc.
- Conform to GigE Vision V2.0 protocol and GenICam standard.
- Conform to CE,FCC,RoHS certififications.
| Model |
OPT-CM500-GL-04 |
| Resolution |
2592x1944 |
| Pixel Size(μ㎡) |
2.2x2.2 |
| Sensor Type |
CMOS Rolling |
| Shutter |
Rolling |
| Sensor |
AR0521 |
| Frame Rate(FPS) |
23 |
| Sensor Format |
1/2.5" |
| Interface |
GigE |
| Lens Mount |
C |
| Exposure Time |
21.5μs~1s |
| Image Format |
Mono8/10/10packed/12/12Packed |
| Gain(dB) |
X1~X32 |
| Dynamic Range(dB) |
74.3 dB |
| Power Supply |
DC 9V~24V power supply via Hirose interface |
| Weight |
60g |
| Power Consumption（W） |
12V≈2.8W |
| Temperature |
Storage temperature：-30℃~ + 80℃; Operation temperature： 0℃~+50℃ |
| GPIO |
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation |

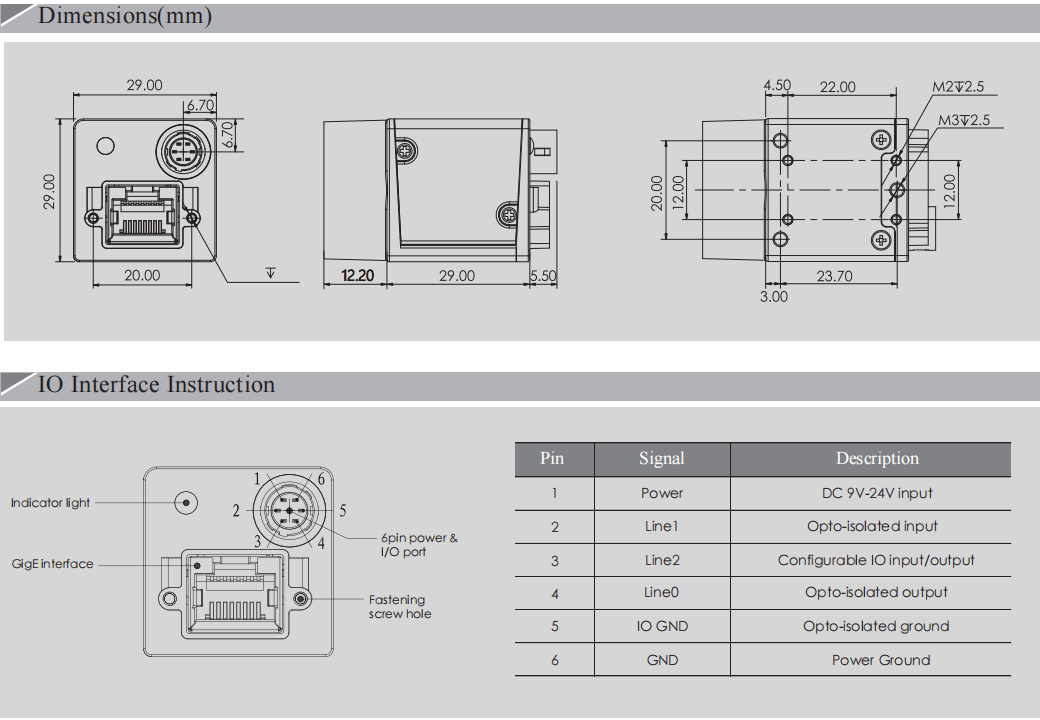

| Dimensions |
29mmx29mmx29mm( not including lens mount and rear case connector) |
| Mono/Color |
M |
