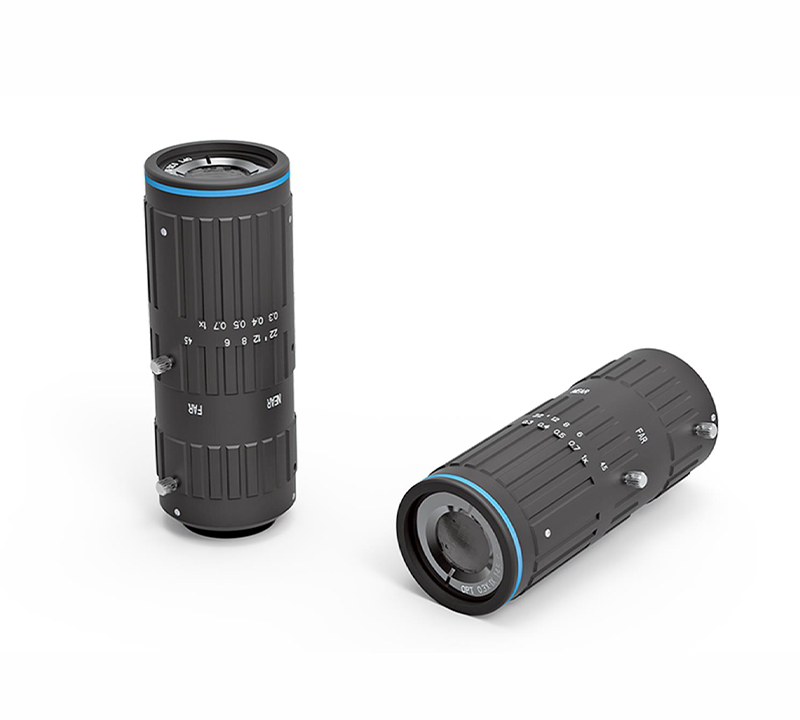

Industrial Variable Magnification Telecentric Lens OPT-CZT0510X
- Adjustable magnification: 0.5X-1.0X
- Large format sensor, max. compatible with 1/1.2" sensor
- Object-space telecentric design, telecentricity: ≤ 0.05°
- Total distortion < 0.1%
Specifications
Size
Applications
| Model | OPT-CZT0510X |
|---|---|
| Working Distance(mm) | 106±3% |
| Aperture(F/#) | F8.0~F32 |
| Magnification（X） | 0.5X-1.0X |
| Sensor Format | 1/1.2" | 1/2" |
| MTF30(lp/mm) | β=0.5X, 0.6X, 0.7X: 90 | β=0.8X: 75 | β=0.9X, 1.0X: 70 |
| Distortion | <0.05% (at 546 nm) |
| Distortion@546nm | <0.05% |
| Telecentricity | β=0.5X, 0.7X, 1.0X: <0.05° | β=0.6X: <0.04° | β=0.8X: <0.03° | β=0.9X: <0.02° |
| Mount | C-Mount |
| Weight(kg) | 0.38 |
