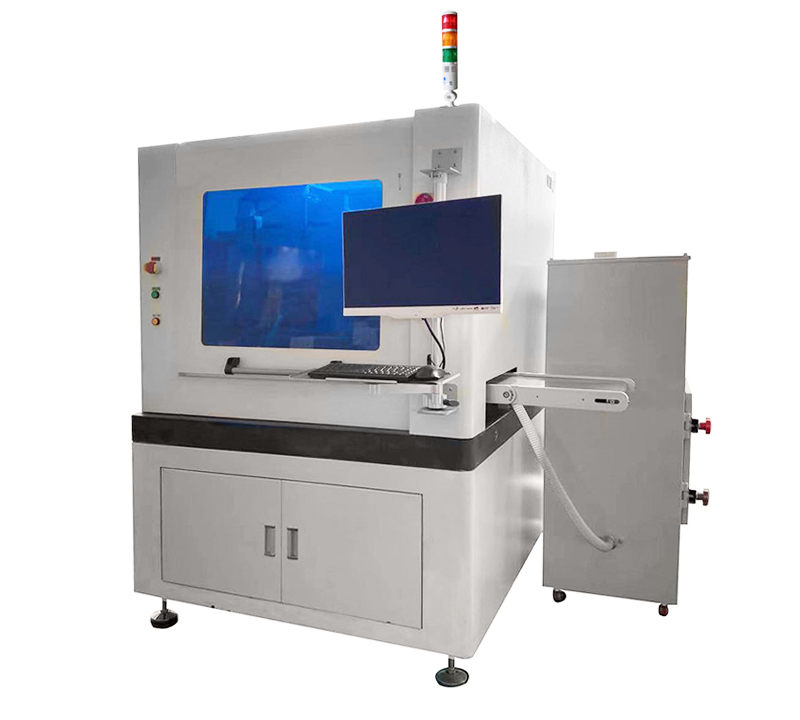

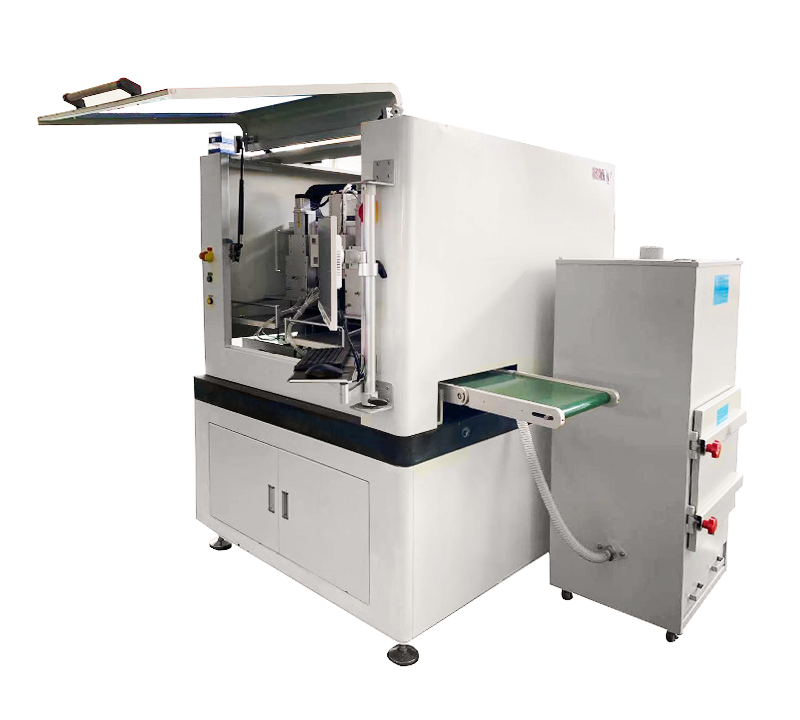

Inline PCB Router Depaneling Machine
- Work Area: 320 x 320mm
- Table: 2
- Warranty: One Year
- PCB Thickness: 0.5-3.5mm
- Spindle Speed: 60000RPM
- Description: PCB Router Separator
- Highlight: 2 Table PCB Router Machine, 0.5mm Thickness PCB Router Machine
Features
Speicification
- Splitting machine can be automatically docked to the production line, saving labor costs.
- Mark point automatic alignment, intelligent correction error.
- Broken knife and sliding knife monitoring, to ensure the normal use of tools.
- Automatic tool change, no need for manual tool change.
- Followed by dust removal, dust removal effect is good.
Speicification
| X Y Z Stroke: | 450*600*60mm |
| Into the board direction: | left into the right out |
| Depanel thickness: | 0-5mm |
| Cutting range: | 330mm*330mm |
| Cutting speed: | 0-100mm/s adjustable |
| Machine Size: | L1800*D1100*H1600 |
| Cutting shapes: | straight, L-shaped, square, round, curved |
| Machine Weight: | About 900KG |
| Spindle motor: | German high-speed motor |
| Host Control: | Advantech Industrial Computer |
| Static electricity elimination: | SMC Ion Generator |
| Servo system: | Fuji servo |
| Position accuracy: | ±0.01mm |
| Input Power: | AC220V/50Hz |
| Screws/Guides: | HIWIN/THK |
| Air consumption: | 10N1/Min |
| Track width adjustment: | automatic track adjustment |
| Inlet plate thickness: | 0.6mm-5mm |
