Fastening

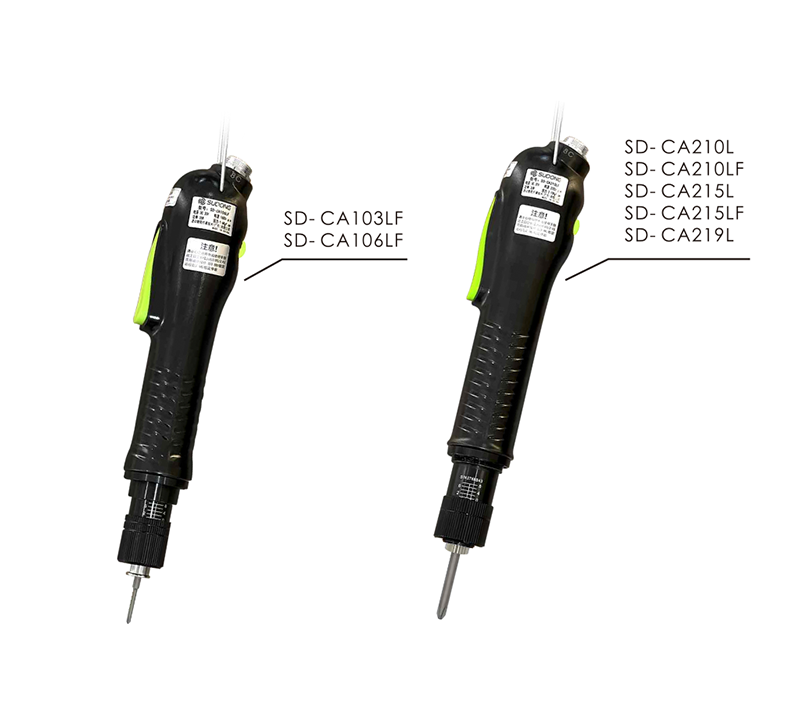

Intelligent auto machine series
- Various control modes are suitable for various automatic tightening equipment.
- No need to modify or expand accessories, just connect with the power controller to use directly.
- Using protocol communication to connect with devices to effectively shield interference signals.
- The newly designed integrated power signal controller uses terminal wiring to ensure a continuous connection.
| Model | Measuring Range kgf.cm |
Measuring Range N.m |
No load speed (r.p.m) HI |
No load speed (r.p.m) LO |
Input voltage | Weight(g) | Screw bit |
|---|---|---|---|---|---|---|---|
| SD-CA103LF | 0.2-3.5 | 0.02-0.34 | 1600 | 1300 | 30V | 330 | Ø4mm |
| SD-CA106LF | 0.3-6.5 | 0.03-0.63 | 1600 | 1300 | |||
| SD-CA210L | 1-10 | 0.1-1 | 1000 | 800 | Ø5mm | ||
| SD-CA210LF | 2000 | 1600 | 500 | ||||
| SD-CA215L | 2-12 | 0.2-1.18 | 1000 | 800 | |||
| SD-CA215LF | 2000 | 1600 | |||||
| SD-CA219L | 3-19 | 0.29-1.86 | 1000 | 800 |
