Fastening

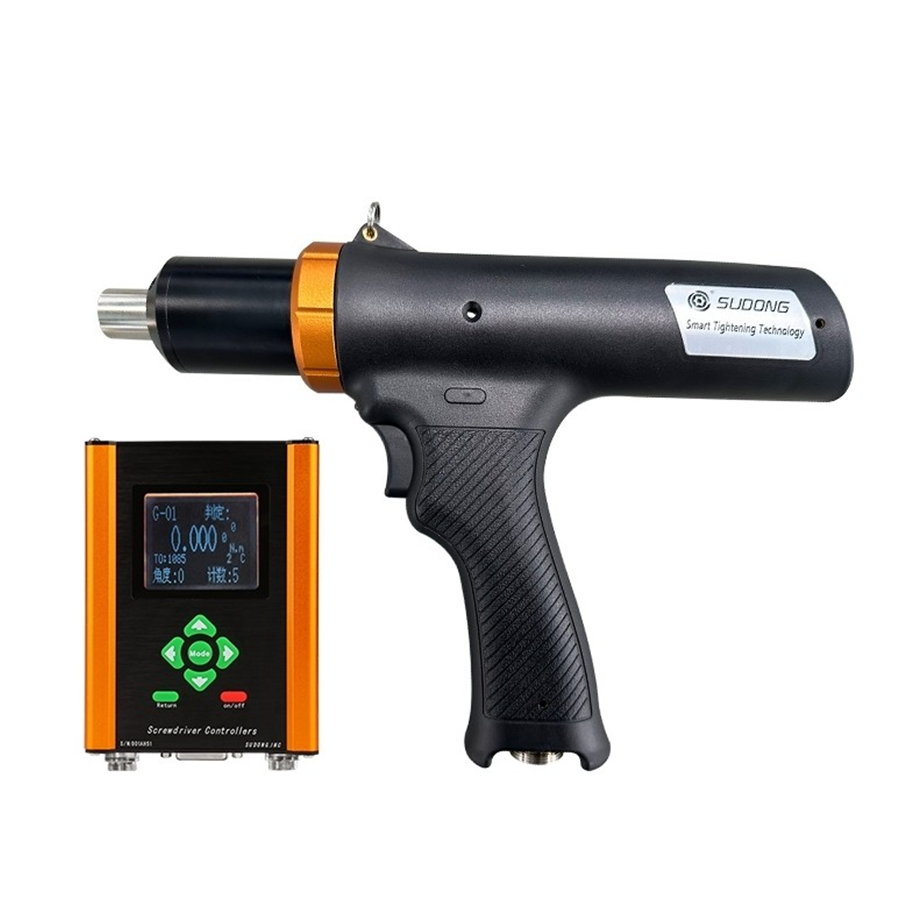

Intelligent Servo Current Control Torque Gun Wrench X2
Servo motor, free programming, LED prompt light, error prompt, locking parameters, easy installation
| Gun type wrench | Kgf.cm | N.m | No-load speed | INPUT VOLTAGE | Weight | Standard batch head |
|---|---|---|---|---|---|---|
| SD-NC350T-AB-X2 | 5-35 | 0.5-3.5 | 3000r.p.m | 48V | 1050g | 1/4-Hex |
| SD-NC700T-AB-X2 | 10-70 | 1-7 | 2000r.p.m | 1/4-Hex | ||
| SD-NC1000T-AB-X2 | 20-100 | 2-10 | 1000r.p.m | 1150g | 1/4-Hex | |
| SD-NC1500T-AB-X2 | 30-150 | 3-15 | 700r.p.m | 1/4-Hex | ||
| SD-NC2500T-AB-X2 | 50-250 | 5-25 | 500r.p.m | 1/4-Hex | ||
| SD-NC4000T-AW-X2 | 90-400 | 9-40 | 300r.p.m | 1300g | 3/8-Hex | |
| SD-NC6500T-AW-X2 | 130-650 | 13-65 | 200r.p.m | 3/8-Hex |
