Fastening

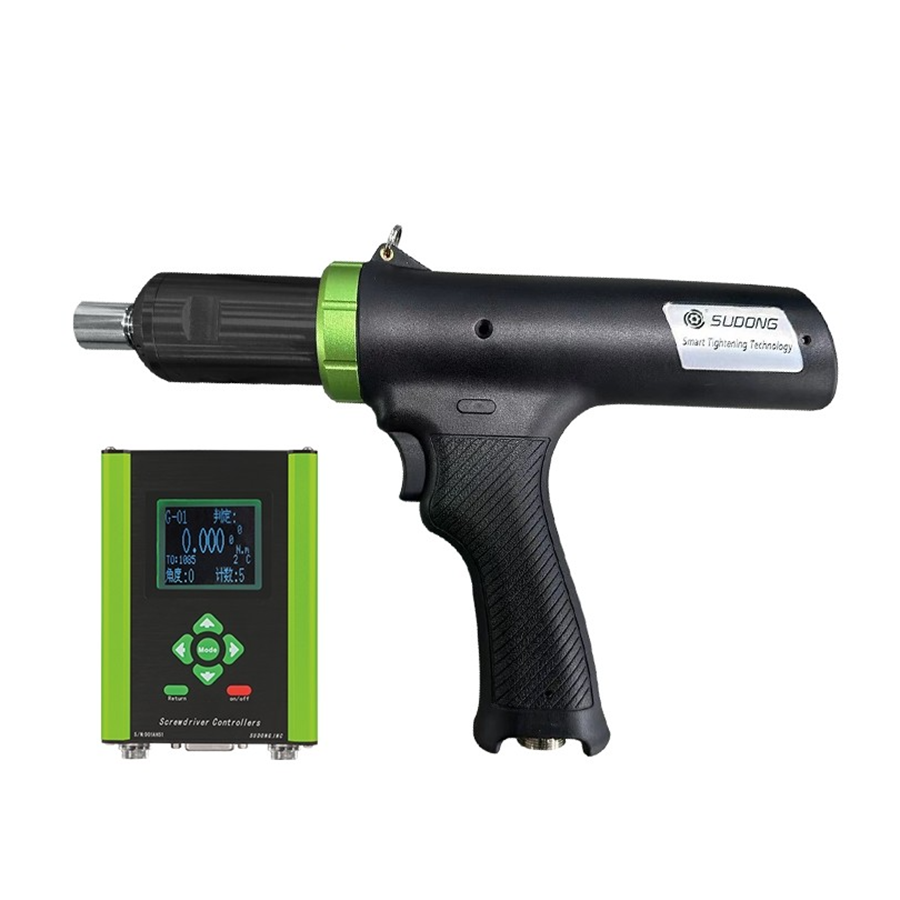

Intelligent Servo Torque Sensor Gun Wrench X2
Servo motor, free programming, LED prompt light, error prompt, locking parameters, easy installation
| Model Gun type wrench |
Torque range | No-load speed | INPUT VOLTAGE | Weight | Standard batch head | |
|---|---|---|---|---|---|---|
| Kgf.cm | N.m | |||||
| SD-600T-SB-X2 | 10-60 | 1-6 | 50-650r.p.m | 30V | 1400g | 1/4-Hex |
| SD-1000T-SB-X2 | 20-100 | 2-10 | 50-450r.p.m | 1/4-Hex | ||
| SD-1500T-SB-X2 | 30-150 | 3-15 | 50-300r.p.m | 1/4-Hex | ||
| SD-2500T-SB-X2 | 50-250 | 5-25 | 50-200r.p.m | 1500g | 1/4-Hex | |
| SD-4000T-SW-X2 | 90-400 | 9-40 | 50-130r.p.m | 3/8-Hex | ||
| SD-6500T-SW-X2 | 130-650 | 13-65 | 50-100r.p.m | 3/8-Hex | ||
|
Optional wrench output head can be customized as needed |
||||||
