Fastening

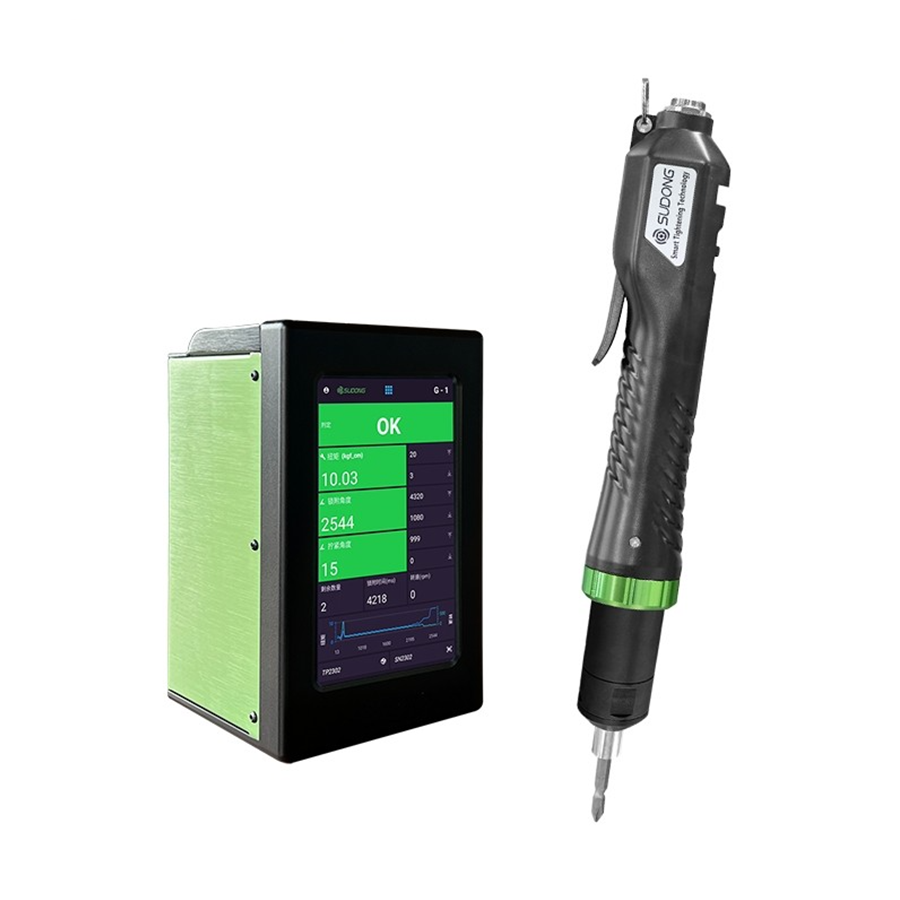

Intelligent Servo Torque Sensor Hand Pressed X7
Servo motor, free programming, LED prompt light, torque sensor, error prompt, locking parameters
| Model | Torque range | No-load speed | INPUT VOLTAGE | Weight | Standard batch head | |
| Hand press type | Kgf.cm | N.m | ||||
| SD-NC100L-SB-X7 | 1-10 | 0.1-1 | 50-1000 r.p.m | 30V | 650g | 1/4-Hex |
| SD-NC200L-SB-X7 | 2-20 | 0.2-2 | 50-1000 r.p.m | 1/4-Hex | ||
| SD-NC350L-SB-X7 | 5-35 | 0.5-3.5 | 50-650 r.p.m | 1/4-Hex | ||
| SD-NC500L-SB-X7 | 5-45 | 0.5-4.5 | 50-650 r.p.m | 1/4-Hex | ||
| SD-NC600L-SB-X7 | 10-60 | 1-6 | 50-650 r.p.m | 1400g | 1/4-Hex | |
| SD-NC1000L-SB-X7 | 20-100 | 2-10 | 50-450 r.p.m | 1/4-Hex | ||
| SD-NC1500L-SB-X7 | 30-150 | 3-15 | 50-300 r.p.m | 1/4-Hex | ||
| SD-NC2500L-SB-X7 | 50-250 | 5-25 | 50-200 r.p.m | 1500g | 1/4-Hex | |
| SD-NC4000L-SW-X7 | 90-400 | 9-40 | 50-130 r.p.m | 3/8-Hex | ||
| SD-NC6500L-SW-X7 | 130-650 | 13-65 | 50-100 r.p.m | 3/8-Hex | ||
