    Sensor

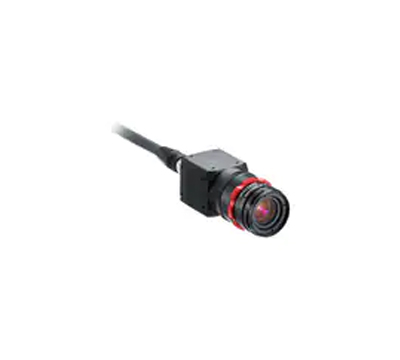

    Environment-resistant 0.31 megapixel camera (Color)

    Model No. : Keyence CA-035C

    Specifications

    Model

    CA-035C

    Image element

    Color CMOS, High-speed reading using square-pixel

    Unit cell size

    6.9 µm × 6.9 µm 0.27 Mil × 0.27 Mil

    Valid pixel count

    0.31 megapixel mode: 640 (H) × 480 (V), 0.24 megapixel mode: 512 (H) × 480 (V)

    Image size

    Equivalent to 1/3"

    Scanning system

    Progressive
    16.5 ms

    Pixel transfer frequency

    25 MHz

    Transfer system

    Digital serial transfer

    Electronic shutter

    Can be set to 0.05 to 9000 msec by specifying the following numerical inputs:
    1/15, 1/30, 1/60, 1/120, 1/240, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/20000

    Lens mount

    C-mount

    Enclosure rating

    IP64*1

    Environmental resistance

    Ambient temperature

    0 to 50°C 32 to 122°F

    Relative humidity

    35 to 85%RH

    Weight

    Approx. 75 g (not including lens)

    *1 A KEYENCE-specified IP64-rated lens and environment-resistant cable must be used on the product.
