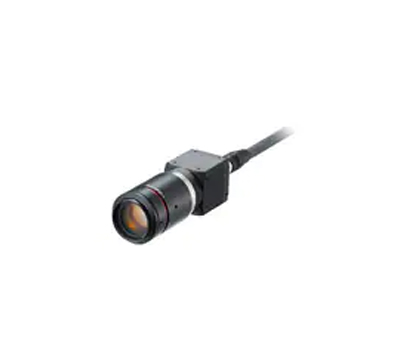

Environment-resistant 2 megapixel camera (Monochrome)

Model

CA-200M

Image element

Monochrome CMOS, High-speed reading using square-pixel

Unit cell size

4.5 µm × 4.5 µm 0.18 Mil × 0.18 Mil

Valid pixel count

2 megapixel mode: 1600 (H) × 1200 (V), 1 megapixel mode: 1024 (H) × 960 (V)

Image size

Equivalent to 1/1.8"

Scanning system

Progressive
56.5 ms

Pixel transfer frequency

43 MHz

Transfer system

Digital serial transfer

Electronic shutter

Can be set to 0.05 to 9000 msec by specifying the following numerical inputs:
1/15, 1/30, 1/60, 1/120, 1/240, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/20000

Lens mount

C-mount

Enclosure rating

IP64^*1

Environmental resistance

Ambient temperature

0 to 45°C 32 to 113°F

Relative humidity

35 to 85%RH

Weight

Approx. 75 g (not including lens)
