    Sensor

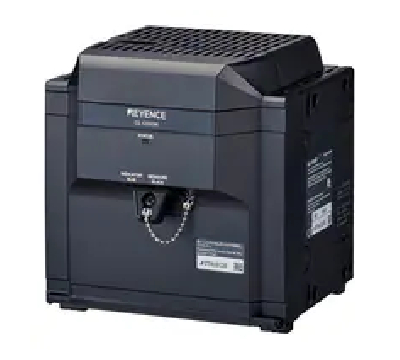

    Optical unit (15 mm ・Quad type)

    Model No.:Keyence CL-L015N
    Specifications


    Model

    CL-L015N*1

    Type

    Optical unit

    Head

    CL-L015 *1

    Reference distance

    15 mm 0.59"

    Reference measurement range

    Measurement range

    ± 1.3 mm ± 0.05"

    Linearity

    ± 0.49 µm ± 0.000019"*2

    High precision measurement range

    Measurement range

    ± 0.5 mm ± 0.02"

    Linearity

    ± 0.41 µm ± 0.000016"*2

    Resolution

    0.25 µm 0.000010"*3

    Spot diameter

    ø 300 µm ø 0.0118"

    Laser class

    Optical unit

    Class 1

    Sampling cycle

    100/200/500/1000 µs (Adjustable 4-stage)

    Environmental resistance

    Enclosure rating

    Head

    IP67 (IEC60529)

    Ambient light

    Target surface illuminance 30,000 lux (Incandescent lamp)

    Ambient temperature

    0 to 50°C 32 to 122°F

    Relative humidity

    20% RH to 85% RH (no condensation)

    Vibration resistance

    Head

    10 to 57 Hz, double amplitude 1.5 mm 0.06"; 2 hours each for X, Y, and Z axes

    Optical unit

    10 to 57 Hz, double amplitude 0.3 mm 0.01"; 2 hours each for X, Y, and Z axes

    Shock resistance

    15G 6 ms

    Temperature characteristic

    Head

    0.005% of F.S. / °C

    Optical unit

    0.015% of F.S. / °C

    Material

    Head

    Front: SUS Rear: Aluminum

    Optical unit

    Polycarbonate

    Weight

    Head

    Approx. 180 g

    Optical unit

    Approx. 1600 g

    *1 Sensor head and optical unit are a matched pair. Not cross compatible.
    *2 Value measured in displacement mode with KEYENCE reference workpiece (mirrored surface).
    *3 Value measured using 16,384 average cycles with KEYENCE reference workpiece (mirrored surface).
