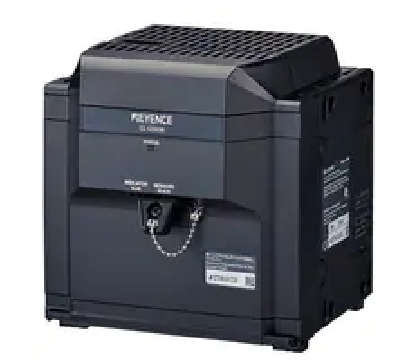

    Optical unit (70 mm ・Focused spot type)

    Model No.:Keyence CL-P070N
    Specifications


    Model

    CL-P070N*1

    Type

    Optical unit

    Head

    CL-P070 *1

    Reference distance

    70 mm 2.76"

    Reference measurement range

    Measurement range

    ± 10 mm ± 0.39"

    Linearity

    ± 2.2 µm ± 0.000087"*2

    High precision measurement range

    Measurement range

    ± 3.0 mm ± 0.12"

    Linearity

    ± 2.0 µm ± 0.000079"*2

    Resolution

    0.25 µm 0.000010"*3

    Spot diameter

    ø 50 µm ø 0.0020"

    Laser class

    Optical unit

    Class 1

    Sampling cycle

    100/200/500/1000 µs (Adjustable 4-stage)

    Environmental resistance

    Enclosure rating

    Head

    IP67 (IEC60529)

    Ambient light

    Target surface illuminance 30,000 lux (Incandescent lamp)

    Ambient temperature

    0 to 50°C 32 to 122°F

    Relative humidity

    20% RH to 85% RH (no condensation)

    Vibration resistance

    Head

    10 to 57 Hz, double amplitude 1.5 mm 0.06"; 2 hours each for X, Y, and Z axes

    Optical unit

    10 to 57 Hz, double amplitude 0.3 mm 0.01"; 2 hours each for X, Y, and Z axes

    Shock resistance

    15G 6 ms

    Temperature characteristic

    Head

    0.005% of F.S. / °C

    Optical unit

    0.015% of F.S. / °C

    Material

    Head

    Front: SUS Rear: Aluminum

    Optical unit

    Polycarbonate

    Weight

    Head

    Approx. 280 g

    Optical unit

    Approx. 1600 g

    *1 Sensor head and optical unit are a matched pair. Not cross compatible.
    *2 Value measured in displacement mode with KEYENCE reference workpiece (mirrored surface).
    *3 Value measured using 16,384 average cycles with KEYENCE reference workpiece (mirrored surface). (Value measured with 4096 average cycles on CL-PT010 only.)
