Sensor
|
Model |

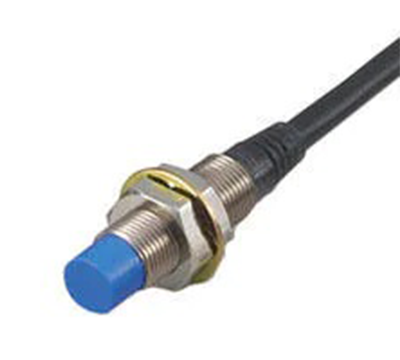

EV-112UC |
|||
|
Type |
DC , Non-shielded |
|||
|
Shape |
M12 |
|||
|
Detecting distance |
8 mm 0.31" ±10% |
|||
|
Detectable object |
Ferrous metals (see Characteristics for nonferrous metals) |
|||
|
Standard target |
30 x 30 mm 1.18" x 1.18" |
|||
|
Hysteresis |
20% max. of detecting distance, within -10 to +70°C 14 to 158°F |
|||
|
Response frequency |
600 Hz |
|||
|
Operation mode |
N.C. |
|||
|
Temperature characteristics |
±10% max. of detecting distance, |
|||
|
Control output |
5 to 200 mA |
|||
|
Protection circuit |
Reversed polarity, short-circuit, surge voltage |
|||
|
Rating |
Power voltage |
12 to 24 VDC, Ripple (P-P) 20 % or less |
||
|
Current consumption (leakage |
Current consumption (leakage current): 1.0 mA max., Residual voltage: 3.6 V max. (with 2-m 6.6' cable) |
|||
|
Residual voltage |
Residual voltage: 3.6 V max. (with 2-m 6.6' cable) |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Ambient temperature |
-25 to +80 °C -13 to 176 °F (No freezing) |
|||
|
Relative humidity |
35 to 95 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Shock resistance |
500 m/s2, 3 times in each of the X, Y, and Z directions |
|||
|
Case material |
Nickel-plated brass |
|||
|
Accessories |
Nut × 2, toothed washer × 1, instruction manual |
|||
|
Weight |
Approx. 110 g |
|||
