    Sensor

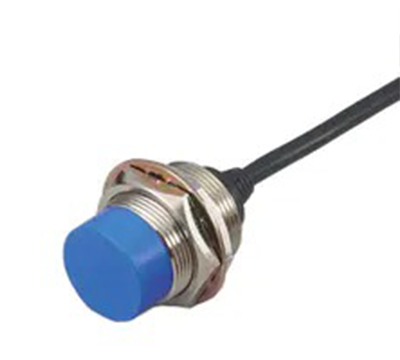

    Main Unit, Unshielded Type, M30

    Model No.:Keyence EV-130UC

    Specifications


    Model

    EV-130UC

    Type

    DC , Non-shielded

    Shape

    M30

    Detecting distance

    27 mm 1.06" ±10%

    Detectable object

    Ferrous metals (see Characteristics for nonferrous metals)

    Standard target
    (iron, t=1 mm 0.04")

    70 x 70 mm 2.76"

    Hysteresis

    20% max. of detecting distance, within -10 to +70°C 14 to 158°F

    Response frequency

    250 Hz

    Operation mode

    N.C.

    Temperature characteristics

    -5 to +20%,
    within -10 to +70°C 14 to 158°F

    Control output
    (switching capacity)

    5 to 200 mA

    Protection circuit

    Reversed polarity, short-circuit, surge voltage

    Rating

    Power voltage

    12 to 24 VDC, Ripple (P-P) 20 % or less

    Current consumption (leakage
    current)

    Current consumption (leakage current): 1.0 mA max., Residual voltage: 3.6 V max. (with 2-m 6.6' cable)

    Residual voltage

    Residual voltage: 3.6 V max. (with 2-m 6.6' cable)

    Environmental resistance

    Enclosure rating

    IP67

    Ambient temperature

    -25 to +80 °C -13 to 176 °F (No freezing)

    Relative humidity

    35 to 95 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

    Shock resistance

    1,000 m/s2, 3 times in each of the X, Y, and Z directions

    Case material

    Nickel-plated brass

    Accessories

    Nut × 2, toothed washer × 1, instruction manual

    Weight

    Approx. 260 g
