    Sensor

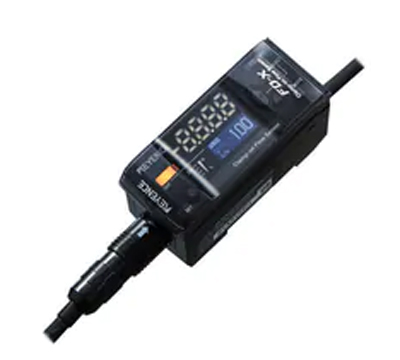

    Controller DIN rail type, main unit

    Model No. : Keyence FD-XC1M

    Specifications

    Model

    FD-XA1E

    Type

    DIN rail type, main unit

    Display method

    Output indicator, 4-digit 7 segment display, OLED, Stability level display

    Display refresh frequency

    Approximately 5 times/second

    Response time

    50 ms/100 ms/500 ms (selectable, default: 500 ms)

    Memory back up

    EEPROM (data storage period: more than 10 years, number of data rewritable times: 1 million times or more)

    Detection mode

    ch.1

    Instantaneous flow rate mode

    ch.2

    Error output mode

    Input/output

    Output

    NPN/PNP selectable
    Open collector output: 30 V or lower, main unit: 50 mA or lower/ch.*1/expansion unit: 20 mA or lower/ch., residual voltage: 2 V or lower

    External input

    Flow rate zero input/zero shift input (switchable)
    Short circuit current: NPN 1 mA or lower/PNP 2 mA or lower, input time: 20 ms or longer

    Network support

    -

    Unit expansion

    Up to 7*2 per main unit

    Protection circuit

    Power supply reverse connection protection, power surge protection, output short circuit protection, output surge protection

    Power supply

    Power voltage

    20 to 30 VDC including 10 % ripple (P-P) , Class 2

    Power consumption

    185 mA or lower (including the sensor head, excluding the load current)

    Environmental resistance

    Ambient temperature

    -10 to +50 °C 14 to 122 °F (No freezing)

    Relative humidity

    35 % to 85 %RH (No condensation)

    Vibration resistance

    10 to 55 Hz, double amplitude 1.5 mm 0.06 ", 2 hours each for X,Y,Z direction

    Shock resistance

    100 m/s2 (approx. 10 G) 16 ms pulse, 1000 times each for X,Y,Z direction

    Material

    Main body case/front sheet: PC, Key top: POM, Cable: PVC

    Weight

    Approx. 210 g

    *1 20 mA or lower/ch when adding expansion units.
    *2 Consult the manual for the number of serially-connectable devices to the N-bus.
