    Sensor

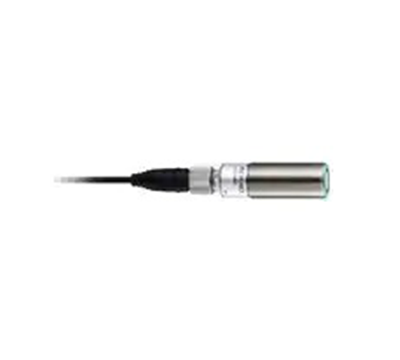

    Sensor Head

    Model No.:Keyence FW-H02

    Specifications


    Model

    FW-H02

    Type

    Standard type

    Detecting area

    50 to 200 mm 2.0" to 7.9"*1

    Response speed

    250 ms

    Temperature characteristics

    0.25% of F.S./°C *2*3

    Indicator lamp

    Operation indicator (orange) x1 (Turns on when the power is turned on.)

    Dimensions

    M18 x P1, Length= 63.5 mm 2.50"

    Environmental resistance

    Enclosure rating

    IP67

    Ambient temperature

    -25 to +70 °C -13 to 158 °F (No freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis

    Material

    Brass-nickel plating, PBT, Polyurethane, Polyamide resin

    Accessories

    M18 nut: 2, Head cable: 2 m 6.6', Standard Mounting Bracket (FW-B01)

    Weight

    Approx. 89 g

    *1 Less stable zones of approx. 2% of F.S. exist at both ends of the detecting range.
    *2 The variation of sonic velocity in air generates errors in the negative direction at 25°C at 77°F and above, or in the positive direction at 25°C at 77°F and below.
    *3 The errors for the indicated value at 25°C at 77°F.
