    Sensor

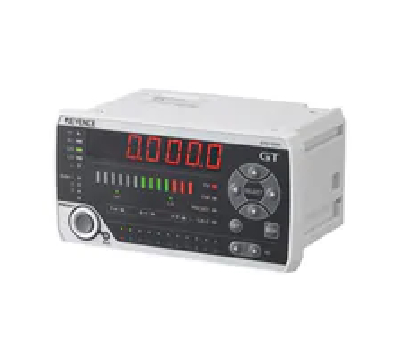

    Amplifier Unit, Large Display Amplifier

    Model No.:Keyence GT2-100P
    Specifications

    Model

    GT2-100P

    Mounting method

    Panel mount/Screw mounting using optional mounting bracket

    Output

    PNP output

    Main unit/expansion unit

    -

    Power supply voltage

    20 to 30 VDC, including 10 % ripple (P-P), Class 2

    Power consumption

    Normal

    4,500 mW max. (30 V, 150 mA max.)

    Power saving (Eco)

    3,600 mW max. (30 V, 120 mA max.)*1

    Display power

    Measured value display

    6 + 1/2-digit 7-segment LED (red)

    Other displays

    2-color, 13-level bar LED display (red, green), indicators (red, green)

    Display range

    -199.999.9 to 199.999.9

    Display resolution

    0.1 μm 0.004 Mil

    Control input

    Timing/preset/
    reset/bank input

    No-voltage input

    Control output

    HH/HI/GO/LO/LL

    PNP open collector, 30 V 50 mA or less*2, residual voltage 1 V or less

    Response time

    hsp(3)/5/10/100/500/1,000 ms
    (When using GT2-Pxxx, hsp(12)/20/40/400/2,000/4,000 ms)

    Environmental resistance

    Ambient temperature

    -10 to +50 °C 14 to 122 °F (No freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 0.15 mm 0.006", 2 hours in each of the X, Y, and Z directions

    Material

    Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET

    Power supply/I/O cable

    Power supply: Terminal block, I/O: 20-pin connector (MIL standard)

    Weight

    Approx. 380 g

    *1 For GT2-100 Series, when the maximum number of sensor heads are connected and all units are set to power saving mode.
    *2 When 2 or more sensor heads are connected, 20 mA or less.
