Sensor
|
Model |

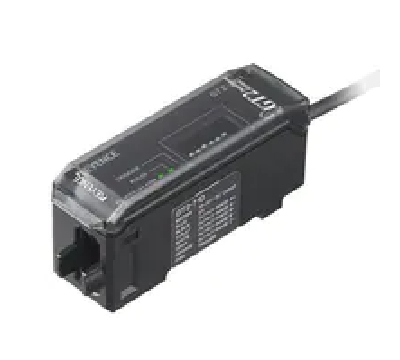

GT2-71D |
|||
|
Mounting method |
DIN rail mount |
|||
|
Power supply voltage |
10 to 30 VDC, including 10 % ripple (P-P), Class 2 |
|||
|
Rating |
Power consumption |
1,600 mW or less (at 30 V: 53.3 mA or less) |
||
|
Number of expandable units |
Cannot be extended |
|||
|
Indicator lamp |
Power (green), alarm (red), pulse output (green), input (green) |
|||
|
Pulse resolution |
0.1 μm 0.004 Mil, 0.5 μm 0.02 Mil, 1 μm 0.04 Mil, 10 μm 0.039 Mil (selectable) |
|||
|
Minimum phase difference |
0.5 μs, 2.5 μs, 5 μs, 25 μs (selectable) |
|||
|
Control input |
origin return |
No-voltage input (with contacts, without contacts), input time: 20 ms or more |
||
|
Output signal |
90 ° phase difference from the A, B, and Z phases; differential square wave (conforms to EIA-422) |
|||
|
Output signal level |
+5 V |
|||
|
Environmental resistance |
Ambient temperature |
-10 to +50 °C 14 to 122 °F (No freezing) |
||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Material |
Polycarbonate (PC) |
|||
|
Weight |
Approx. 110 g (including the power supply cable) |
|||
