    Sensor

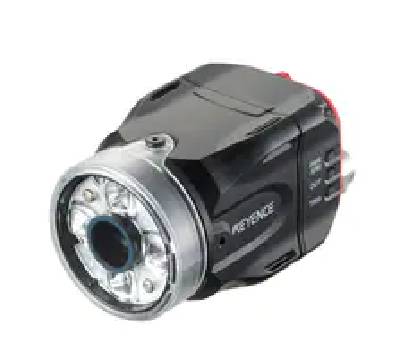

    Sensor, Standard distance, Monochrome, Manual focus model

    Model No. : Keyence IV-500M
    Specifications


    Model

    IV-500M

    Type

    Standard distance

    Installed distance

    50 to 500 mm 1.97" to 19.69"

    View

    Installed distance 50 mm 1.97": 25 (H) x 18 (V) mm 0.98" (H) x 0.71"(V) to
    installed distance 500 mm 19.69": 210 (H) x 157 (V) mm 8.27" (H) x 6.18" (V)

    Image sensor

    Type

    1/3 inch monochrome CMOS

    Pixel

    752 (H) x 480 (V) 29.61" (H) x 18.90" (V)

    Focus adjustment

    Manual

    Exposure time

    1/10 to 1/25,000

    Lights

    Illumination

    Red LED

    Lighting method

    Pulse lighting/DC lighting is switchable

    Tools

    Type

    Shape Detection, Color Area*1, Area*2, position adjustment

    Number

    Detection tools: 16 tools, position adjustment tool: 1 tool*3

    Switch settings (programs)

    32 programs

    Image history

    Numbers

    300 images*4*5

    Condition

    NG only/All is selectable*5

    Analysis information

    OFF/Statistics/Histograms is switchable
    Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgment results list by tools
    Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs*6

    Other functions

    HDR, HighGain, Color filters*1, Digital zoom*7, Brightness correction, Tilt correction, White balance*1,
    Mask outline, Mask area, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator*8

    Indicators

    PWR/ERR, OUT, TRIG, STATUS, LINK/ACT

    Input

    Type

    Non-voltage input/voltage input is switchable
    For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit)
    For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V)

    Inputs

    6 inputs (IN1 to IN6)

    Function

    IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions
    Assignable functions: Program switching, Clear error, External master image registration

    Output

    Type

    Open collector output NPN/PNP is switchable, N.O./N.C. is switchable
    For open collector NPN output: Maximum rating 26.4 V 50 mA, remaining voltage 1.5 V or lower
    For open collector PNP output: Maximum rating 26.4 V 50 mA, remaining voltage 2 V or lower

    Outputs

    4 outputs (OUT1 to OUT4)

    Function

    Enable by assigning the optional functions
    Assignable functions: Total judge result, RUN, BUSY, Error, Position adjustment result, Judge result of each tool, Result of the logical operation of each tool

    Ethernet

    Standard

    100BASE-TX/10BASE-T*9

    Connector

    M12 4pin connector*9

    Network function

    FTP client, EtherNet/IPTM, PROFINET

    Rating

    Power voltage

    24 VDC ±10 % (including ripple)

    Current consumption

    0.6 A or less

    Environmental resistance

    Enclosure rating

    IP67*10

    Ambient temperature

    0 to +50 °C 32 to 122 °F (No freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions*11

    Shock resistance

    500 m/s2, 3 times in each of 6 directions*11

    Material

    Main unit case: Aluminium die-casting, Packing: NBR, Front cover: Acrylic, Mounting adapter: POM

    Weight

    Approx. 270 g

    *1 Color type only
    *2 Possible with both the Color type and monochrome type
    *3 Tools can be installed by programs.
    *4 When using the FTP client function: 210 pictures
    *5 Saves to the memory in the sensor. The images saved in the sensor can be backed up to the USB memory installed to the intelligent monitor (IV-M30) or to the PC by the software for IV (IV-H1).
    *6 This can be displayed on the intelligent monitor (IV-M30) or by software for the IV/IV-G Series (IV-H1).
    *7 Possible with both the color type and monochrome type
    *8 Simulator can be used with the IV software (IV-H1).
    *9 This is for connection with the intelligent monitor (IV-M30) or software for IV (IV-H1).
    *10 Except when polarized filter attachment (OP-87436/OP-87437) is mounted
    *11 Except when IV-G dome attachment (IV-D10) is mounted
