    Sensor

    Long range, Automatic focus model

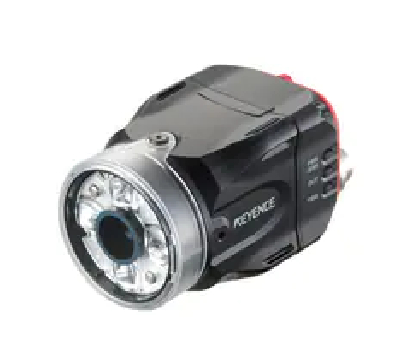

    Model No. : Keyence IV-H2000MA
    Specifications


    Model

    IV-H2000MA

    Type

    Long range

    Installed distance

    300 to 2,000 mm 11.81" to 78.74"

    View

    Installed distance 300 mm 11.81": 45 (H) x 33 (V) mm 1.77" (H) x 1.30"(V) to
    installed distance 2,000 mm 78.74": 300 (H) x 225 (V) mm 11.81" (H) x 8.86" (V)

    Image sensor

    Type

    1/3 inch monochrome CMOS

    Pixel

    752 (H) x 480 (V) 29.61" (H) x 18.90" (V)

    Focus adjustment

    Auto*1

    Exposure time

    1/10 to 1/25,000

    Lights

    Illumination

    Infrared LED

    Lighting method

    Pulse lighting/DC lighting is switchable

    Tools

    Type

    Shape Detection, Color Area*2, Area*3, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment (1-Axis/2-Axis Adjustment)

    Number

    Detection tools: 16 tools, position adjustment tool: 1 tool*4

    Switch settings (programs)

    32 programs

    Image history

    Numbers

    300 images*5*6

    Condition

    NG only/All is selectable*6

    Analysis information

    OFF/Statistics/Histograms/Matching rate list is switchable
    Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgment results list by tools
    Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs
    Matching rate list: Judgment results list by tools, matching rate list by tools, judgment bar list by tools*7

    Other functions

    HDR, HighGain, Color filters*2, Digital zoom*8, Brightness correction, Tilt correction, White balance*2, Mask function, Color histogram, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator*9, Sensor date/time information addition, Scaling function, Failing sensor list, Failure hold

    Indicators

    PWR/ERR, OUT, TRIG, STATUS, LINK/ACT

    Input

    Type

    Non-voltage input/voltage input is switchable
    For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit)
    For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V)

    Inputs

    6 inputs (IN1 to IN6)

    Function

    IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions
    Assignable functions: Program switching, Clear error, External master image registration

    Output

    Type

    Open collector output NPN/PNP is switchable, N.O./N.C. is switchable
    For open collector NPN output: Maximum rating 26.4 V 50 mA, remaining voltage 1.5 V or lower
    For open collector PNP output: Maximum rating 26.4 V 50 mA, remaining voltage 2 V or lower

    Outputs

    4 outputs (OUT1 to OUT4)

    Function

    Enable by assigning the optional functions
    Assignable functions: Total judge result, RUN, BUSY, Error, Position adjustment result, Judge result of each tool, Result of the logical operation of each tool

    Ethernet

    Standard

    100BASE-TX/10BASE-T*10

    Connector

    M12 4pin connector*10

    Network function

    FTP client, EtherNet/IPTM, PROFINET

    Rating

    Power voltage

    24 VDC ±10 % (including ripple)

    Current consumption

    0.6 A or less

    Environmental resistance

    Enclosure rating

    IP67*11

    Ambient temperature

    0 to +50 °C 32 to 122 °F (No freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions*12

    Shock resistance

    500 m/s2, 3 times in each of 6 directions*12

    Material

    Main unit case: Aluminium die-casting, Packing: NBR, Front cover: Acrylic, Mounting adapter: POM

    Weight

    Approx. 270 g

    *1 The focusing position can be automatically adjusted at the time of installation. Deactivated during the operation. Focusing position can be registered by program.
    *2 Color type only
    *3 Possible with both the Color type and monochrome type
    *4 Tools can be installed by programs.
    *5 When using the FTP client function: 210 pictures
    *6 Saves to the memory in the sensor. The images saved in the sensor can be backed up to the USB memory installed to the intelligent monitor (IV-M30) or to the PC by the software for IV (IV-H1).
    *7 This can be displayed on the intelligent monitor (IV-M30) or by software for IV (IV-H1).
    *8 Possible with both the color type and monochrome type
    *9 Simulator can be used with the IV software (IV-H1).
    *10 This is for connection with the intelligent monitor (IV-M30) or software for IV (IV-H1).
    *11 Except when polarized filter attachment (OP-87436/OP-87437) is mounted
    *12 Except when IV-G dome attachment (IV-D10) is mounted
