    Sensor

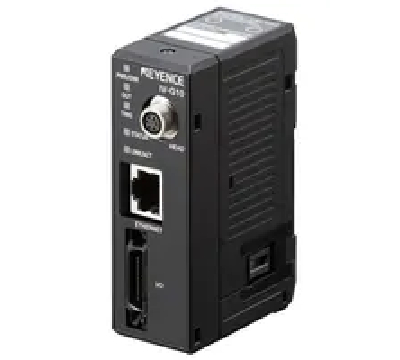

    Sensor Amplifier for IV-HG, Main unit

    Model No.:Keyence IV-HG10
    Specifications


    Model

    IV-HG10

    Type

    Main unit

    Tools

    Type

    Shape Detection, Color Area*1, Area*2, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment (1-Axis/2-Axis Adjustment), OCR*3

    Number

    Detection tools: 16 tools, position adjustment tool: 1 tool*4

    Switch settings (programs)

    32 programs

    Image history

    Numbers

    When using a color type head: 100 images*5, when using a monochrome type head: 300 images*6*7

    Condition

    NG only/All is selectable*7

    Analysis information

    OFF/Statistics/Histograms/Matching rate list is switchable
    Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgment results list by tools
    Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs
    Matching rate list: Judgment results list by tools, matching rate list by tools, judgment bar list by tools*8

    Other functions

    HDR, HighGain, Color filters*1, Digital zoom (2x, 4x)*9, Brightness correction, Tilt correction, White balance*1, Mask function, Color histogram, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator, Mutual interference prevention, Direct connection (2 units or more), Sensor date/time information addition, Scaling function, Failing sensor list, Failure hold

    Indicators

    PWR/ERR, OUT, TRIG, STATUS, LINK/ACT

    Input

    Type

    Non-voltage input/voltage input is switchable
    For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit)
    For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V)

    Inputs

    6 inputs (IN1 to IN6)

    Function

    IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions
    Assignable functions: Program switching, Clear error, External master image registration, Main unit/expansion unit simultaneous input

    Output

    Type

    Open collector output NPN/PNP is switchable, N.O./N.C. is switchable
    For open collector NPN output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-HG15]), remaining voltage 1.5 V or lower
    For open collector PNP output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-HG15]), remaining voltage 2 V or lower

    Outputs

    8 outputs (OUT1 to OUT8)

    Function

    Enable by assigning the optional functions
    Assignable functions: Total judgment result, RUN, BUSY, Error, Position adjustment result, Judgment result of each tool,
    Result of the logical operation of each tool, Main unit/expansion unit logical output

    Ethernet

    Standard

    100BASE-TX/10BASE-T*10

    Connector

    RJ-45 8pin connector*10

    Network function

    FTP client, EtherNet/IPTM, PROFINET

    Rating

    Power voltage

    24 VDC ±10 % (including ripple)

    Current consumption

    0.8 A or less. 1.5 A or less when also using an expansion unit (IV-HG15). (The output load is excluded.)

    Environmental resistance

    Ambient temperature

    0 to +50 °C 32 to 122 °F (No freezing)*11

    Relative humidity

    35 to 85 % RH (No condensation)

    Material

    Main unit case: Polycarbonate

    Weight

    Approx. 150 g

    *1 Color type only
    *2 Monochrome type only
    *3 Supported with Ver. R5.00.00 or later.
    *4 Tools can be installed by programs.
    *5 When using the FTP client function: 70 pictures
    *6 When using the FTP client function: 210 pictures
    *7 Saves to the sensor amplifier's internal memory. The images saved to the sensor amplifier can be backed up to the USB memory device inserted into the intelligent monitor (IV-M30) or to the PC by the software for the IV-H/IV-HG Series (IV-H1).
    *8 This can be displayed on the intelligent monitor (IV-M30) or by software for the IV-H/IV-HG Series (IV-H1).
    *9 Possible with both the color type and monochrome type
    *10 This is for connection with the intelligent monitor (IV-M30) or software for the IV-H/IV-HG Series (IV-H1).
    *11 When attaching the sensor amplifier to a DIN rail, attach the sensor amplifier to a metal plate.
