    Sensor

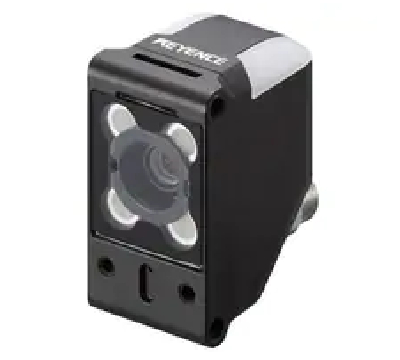

    Sensor Head, Wide field of view, Color, Automatic focus model

    Model No.:Keyence IV-HG300CA
    Specifications


    Model

    IV-HG300CA

    Type

    Wide field of view sensor model

    Installed distance

    40 to 300 mm 1.57" to 11.81"

    View

    Installed distance 40 mm 1.57": 42 (H) × 31 (V) mm 1.65" (H) × 1.22" (V) to
    installed distance 300 mm 11.81": 275 (H) × 206 (V) mm 10.83" (H) × 8.11" (V)

    Image sensor

    Type

    1/3 inch color CMOS

    Pixel

    752 (H) × 480 (V)

    Focus adjustment

    Auto*1

    Exposure time

    1/25 to 1/50,000

    Lights

    Illumination

    White LED

    Lighting method

    Pulse lighting

    Indicators

    2 (the same display details for both indicators)

    Environmental resistance

    Enclosure rating

    IP67*2

    Ambient temperature

    0 to +50 °C 32 to 122 °F (No freezing)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions*3

    Shock resistance

    500 m/s2, 3 times in each of 6 directions*3

    Material

    Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU

    Weight

    Approx. 75 g

    *1 The focusing position can be automatically adjusted at the time of installation. Deactivated during the operation. Focusing position can be registered by program.
    *2 Except when polarized filter attachment (OP-87899/OP-87900/OP-87901/OP-87902) is mounted
    *3 Except when IV-HG dome attachment (IV-GD05/IV-GD10) is mounted
