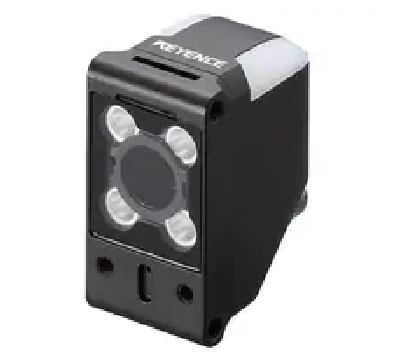

Sensor Head, Wide field of view, Monochrome, Automatic focus model

Model

IV-HG600MA

Type

Wide field of view sensor model

Installed distance

40 to 600 mm 1.57" to 23.62"

View

Installed distance 40 mm 1.57": 42 (H) × 31 (V) mm 1.65" (H) × 1.22" (V) to
installed distance 600 mm 23.62": 550 (H) × 412 (V) mm 21.65" (H) × 16.22" (V)

Image sensor

Type

1/3 inch monochrome CMOS

Pixel

752 (H) × 480 (V)

Focus adjustment

Auto^*1

Exposure time

1/50 to 1/50000

Lights

Illumination

Infrared LED

Lighting method

Pulse lighting

Indicators

2 (the same display details for both indicators)

Environmental resistance

Enclosure rating

IP67^*2

Ambient temperature

0 to +50 °C 32 to 122 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions^*3

Shock resistance

500 m/s², 3 times in each of 6 directions^*3

Material

Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU

Weight

Approx. 75 g
