LCR Meter High-Frequency LCR-8200 series

Description

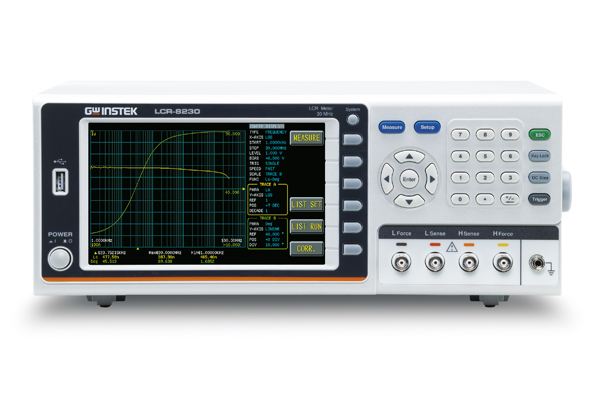

Instek launches a new series of high-frequency LCR meter ~ LCR-8200, which has five models and the maximum test frequency is up to 30MHz. The entire series adopts 7-inch color display and features a high measurement accuracy (0.08%). The measurement results can be presented numerically or graphically according to the selected measurement mode, allowing users to optimally interpret the characteristics of the DUT. At the same time, a full range of standard interfaces such as USB device / RS-232C / Handler and GPIB allow users to control the instrument by the most familiar interface without worrying about additional hardware investment costs. Furthermore, the series also provides USB storage function when operating in the graphics mode. The measured characteristic curves and values of the DUT are saved for subsequent analysis. The wide variety of features of the LCR-8200 can help users easily respond to the test requirements of passive components in R&D, engineering, and production.

LCR-8200 Series Specifications

All specification apply at 23 ± 5 °C, unless otherwise stated, and 30 minutes after the instrument has been turned on

SPECIFICATIONS
MODEL	CR-8230	LCR-8220	LCR-8210	LCR-8205	LCR-8201
TEST FREQUENCY
	DC, 10Hz~30MHz; 6 Digits, ±0.0007%	DC, 10Hz~20MHz; 6 Digits, ±0.0007%	DC, 10Hz~10MHz; 6 Digits, ±0.0007%	DC, 10Hz~5MHz; 6 Digits, ±0.0007%	DC, 10Hz~1MHz; 6 Digits, ±0.0007%
OUTPUT IMPEDANCE
25Ω / 100Ω SELECTABLE
BASIC ACCURACY
±0.08%
TEST SPEED
MAX: 2.5ms(>10kHz), FAST: 50ms(>20Hz), MEDIUM: 100ms SLOW: 300ms, SLOW2: 600ms
TEST SIGNAL LEVEL
AC Voltage:	10mV ~ 2Vrms (FREQ. ≦1MHz), 10mV ~ 1Vrms (FREQ. > 1MHz or FREQ. ≦1MHz and RO=25Ω)
AC Current:	100μA ~ 20mArms (RO=100Ω), 200μA ~ 40mArms (RO=25Ω)
DCR Voltage:	1Vdc (40mA max.)
MEASUREMENT PARAMETERS
Maximum four parameters can be measured and displayed at the same time. Impedance (Z), Inductance (Ls / Lp), Capacitance (Cs / Cp), AC Resistance (Rs / Rp), Quality Factor (Q), Dissipation Factor (D), Admittance (Y), Conductance (G), Reactance (X), Phase Angle (θd / θr), Susceptance (B), DC Resistance (Rdc)
LIST MEASUREMENT
Listed Steps:		15
Listed Parameters:		Freq/Vac/Iac/DC Bias/Comp/BIN
Trigger:		AUTO, REPEAT, SINGLE
SWEEP MEASUREMENT
Swept Graphical:		Two of measurement parameters
Swept Parameters:		Freq/Vac/Iac, Keep Trace
Auto Level Control (ALC):		Standard
DC Bias:		0 ~ ±12V
Handler:		PASS, FAIL and OK, NG or BIN 1-9
OTHER FEATURES
Correction:		Open/Short/HF Load/Load
V/I Monitor:		Vac, Iac, Vdc, Idc
Comparator:		Value, Δ, Δ%
Buzzer: Average:		OFF, Pass, Fail
Average:		1 to 64
GENERAL
Display		7" LCD color display (800x480)

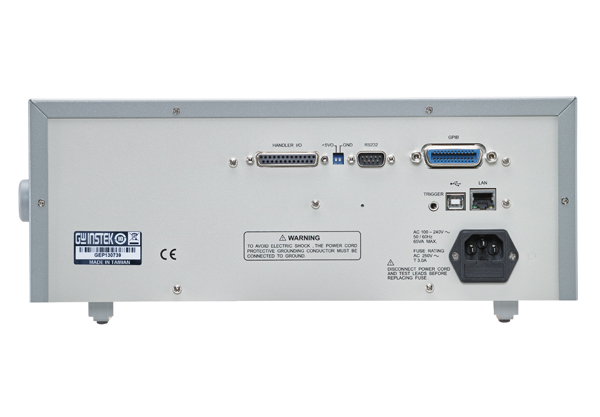

Interface		USB/GPIB/LAN/RS-232/Handler/USB Host/TRIGGER Input
Power Source		AC 100V~240V, 50/60Hz; Consumption: 65VA (max.)
Dimensions & Weight		346 (W) X 145 (H) X 335 (D) mm; Approx. 3.3kg

Included Accessories

Safety Sheet x1, CD x1 (User manual), Power cord x1, LCR-06B x1


Option

LCR-DB1  DC Bias box (Freq. upto 2MHz / max. input voltage +/- 200V)


Optional Accessories

Accessory Model	Brief Description	LCR-8230	LCR-8220	LCR-8210	LCR-8205	LCR-8201
LCR-05A	Test Fixture for axial & radial leaded components (up to 30MHz)	V	V	V	V	V
LCR-06B	Test Lead with Kelvin clip (4 wire type)	△	△	△	△	V
LCR-07	Test Lead with Alligator clip (2 wire type)	△	△	△	△	V
LCR-08	Test Fixture (Tweezers) for SMD/Chip components	△	△	△	△	V
LCR-10A	Test Fixture for Bottom Electrode components (up to 30MHz)	V	V	V	V	V
LCR-12	Test Lead with Kelvin clip (4 wire type)	△	△	V	V	V
LCR-15A	Test Fixture for SMD/Chip components (up to 30MHz)	V	V	V	V	V
GTL-234	RS-232C Cable	V	V	V	V	V
GTL-246	USB Cable	V	V	V	V	V
GTL-248	GPIB Cable	V	V	V	V	V

Note " △ " means the accessories work with a frequency limitation
