Components & Accessories

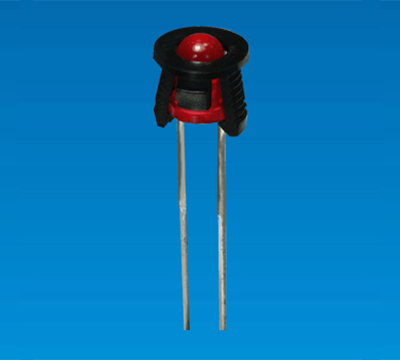

LED HOUSING CLED-1J

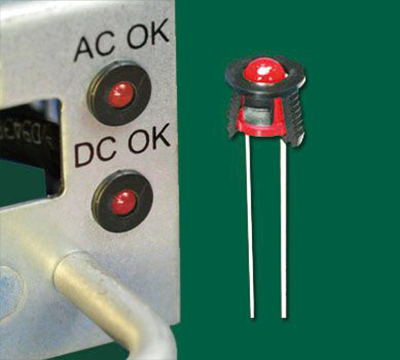

- To mount LED lamp on the panel.
- Suit for Ø3,2Pin LED lamp.
LED HOUSING CLED-1J
FEATURES
SPECIFICATION
FOR Ø3 2PIN LED
FEATURES
- To mount LED lamp on the panel.
- Suit for Ø3,2Pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
FOR Ø3 2PIN LED
| PART NO | A | B | C | D | E | T | PACKAGE |
| CLED-1J | 5.7 | 5.5 | Ø4.5 | 3.0 | 3.5 | 0.8 | 2000 |
| CLED-1K | 5.7 | 5.5 | Ø4.5 | 3.0 | 3.5 | 1.2 | |
| CLED-1N | 5.7 | 5.5 | Ø4.5 | 3.0 | 3.6 | 1.6 | |
| CLED-3D | 5.9 | 5.5 | Ø4.5 | 3.0 | 3.45 | 1.0 | |
| CLED-6A | 5.7 | 5.5 | Ø4.5 | 3.1 | 3.4 | 0.8 |
