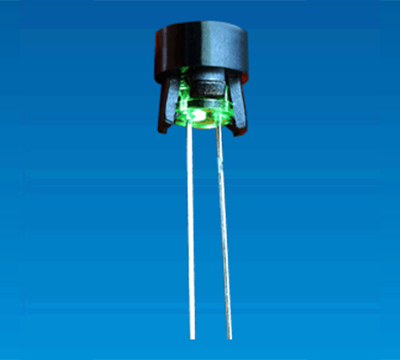

LED HOUSING CLED-1M

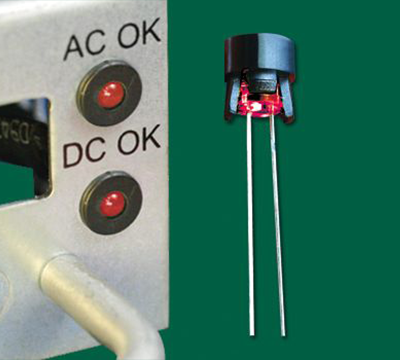

- To mount LED lamp on the panel.
- Suit for both Ø5,2,3pin LED lamp.
LED HOUSING CLED-1M
FEATURES
SPECIFICATION
FOR Ø5 2PIN or 3PIN LED
FEATURES
- To mount LED lamp on the panel.
- Suit for both Ø5,2,3pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK

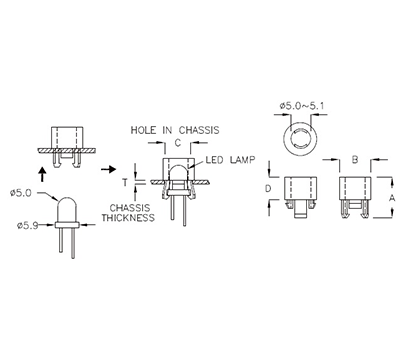

FOR Ø5 2PIN or 3PIN LED
| PART NO | A | B | C | D | T CHASSIS THICKNESS |
PACKAGE |
| CLED-1M | 8.5 | Ø7.9 | Ø6.6 | 4.0 | 0.8~1.0 | 2000 |
| CLED-1Q | 10.3 | Ø7.9 | Ø6.5 | 6.1 | 0.8~1.0 | |
| CLED-1R | 13.8 | Ø7.9 | Ø6.5 | 9.6 | 0.8~1.0 | |
| CLED-1FC | 9.2 | Ø7.9 | Ø6.5 | 5.0 | 0.8~1.0 |
