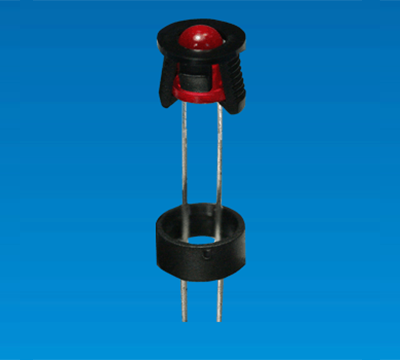

LED HOUSING CLED-1S

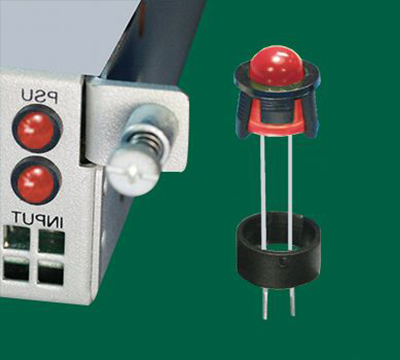

- To mount LED lamp on the panel.
- Suit for Ø5 2pin LED lamp.
LED HOUSING CLED-1S
FEATURES
SPECIFICATION
FOR Ø5 2PIN LED
FEATURES
- To mount LED lamp on the panel.
- Suit for Ø5 2pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- "CLED-1S" ALSO CAN ASSEMBLE WITH UW-1S
FOR Ø5 2PIN LED

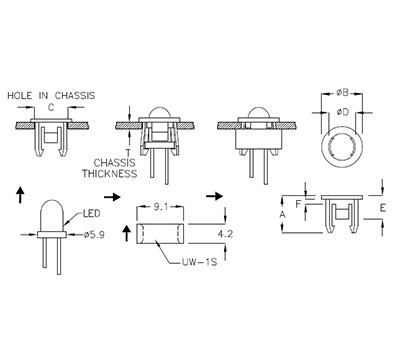

| PART NO | A | B | C | D | E | F | T | PACKAGE |
| CLED-1S | 7.0 | 7.8 | Ø6.2 | 5.1 | 4.5 | 1.0 | 1.0~1.6 | 2000 |
| CLED-1T | 6.9 | 7.8 | Ø6.2 | 5.1 | 4.5 | 1.9 | 1.0~1.6 | |
| CLED-1U | 7.0 | 7.8 | Ø6.2 | 5.1 | 4.5 | 0.2 | 1.0 |
