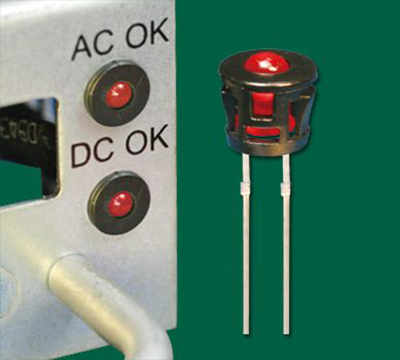

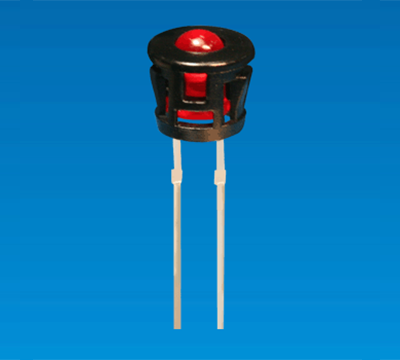

LED HOUSING CLED-3C
- To mount LED lamp on the panel.
- Suit for Ø3,2pin LED lamp.
LED HOUSING CLED-3C
FEATURES
SPECIFICATION
FOR Ø3 2PIN or 3PIN LED
FEATURES
- To mount LED lamp on the panel.
- Suit for Ø3,2pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
FOR Ø3 2PIN or 3PIN LED
| PART NO | A | B | D | T | Ø3 LED | FORM | PACKAGE |
| CLED-3C | 5.6 | 6.0 | Ø3.0 | 0.8 | 2 PIN | 1 | 2000 |
| CLED-3H | 5.8 | 6.0 | Ø3.0 | 0.9 | 2 PIN | 1 | |
| CLED-3K | 5.6 | 6.0 | Ø2.9 | 0.8 | 3 PIN | 2 | |
| CLED-3RY | 5.6 | 6.0 | Ø3.0 | 1.0 | 2 PIN | 1 |
