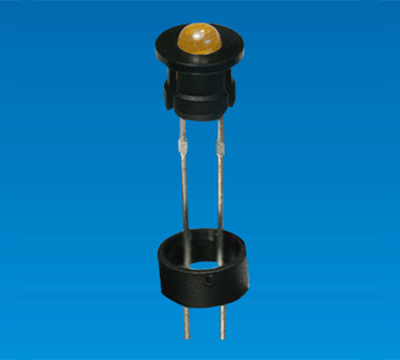

LED HOUSING CLED-4A

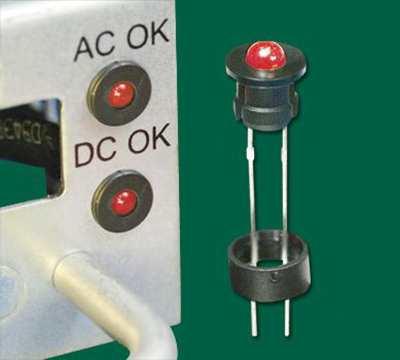

- To mount LED lamp on the panel.
- Suit for 3mm 2pin LED lamp.
LED HOUSING CLED-4A
FEATURES
SPECIFICATION
FOR Ø3 2PIN LED
FEATURES
- To mount LED lamp on the panel.
- Suit for 3mm 2pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- ALSO CAN ASSEMBLE WITH UW-01D
FOR Ø3 2PIN LED
| PART NO | A | B | C | D | E | T CHASSIS THICKNESS |
PACKAGE |
| CLED-4A | 5.5 | Ø6.0 | Ø4.15 | 3.0 | 1.1 | 0.8 | 2000 |
| CLED-4D | 5.6 | Ø6.0 | Ø4.2 | 3.0 | 2.7 | 0.8~2.5 |
