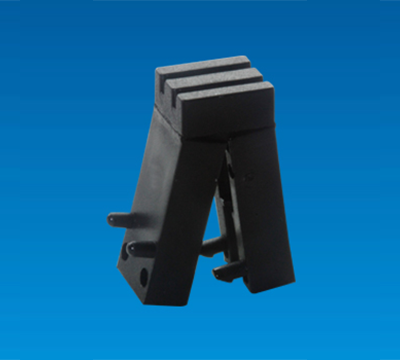

LED HOUSING EDZ-03

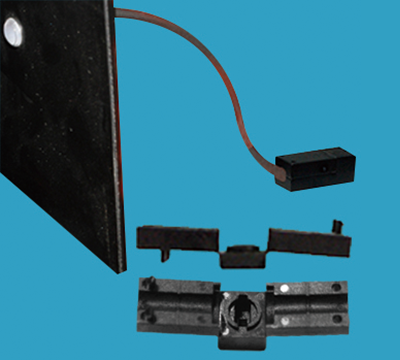

- It can snap the unit into the hole on panel to assemble.
- Save extra cost to develop new tool for rigid light pipe for each design.
LED HOUSING EDW-10
FEATURES
SPECIFICATION
FOR Ø3 2PIN LED LAMP
FEATURES
- It can snap the unit into the hole on panel to assemble.
- Save extra cost to develop new tool for rigid light pipe for each design.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
FOR Ø3 2PIN LED LAMP
| PART NO | A | B | C | D | E | F | G | H | I | J | K |
FIBER |
PACKAGE |
| EDZ-03 | 13.0 | Ø4.0 | 7.0 | 6.5 | 6.0 | 15.9 | 14.6 | 11.05 | 2.1 | 3.2 | 2.9 | Ø2.0 | 500 |
| EDZ-2C | 12.3 | Ø4.0 | 6.0 | 7.0 | 7.5 | 14.8 | 13.5 | 10.05 | 3.0 | 3.6 | 2.4 | Ø3.0 |
