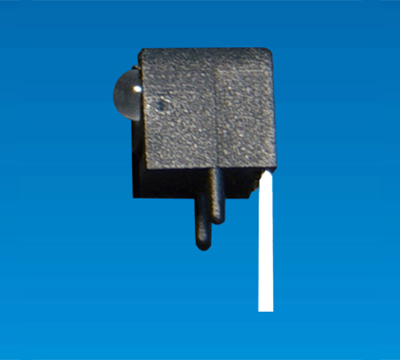

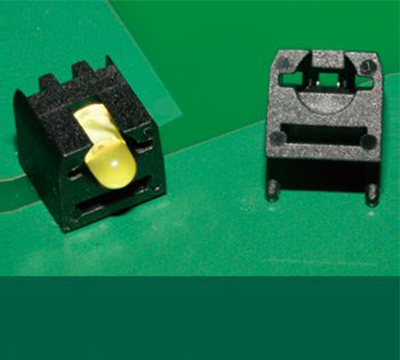

LED HOUSING EKM-05
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 3mm 3pin LED lamp.
- Right angle design with mount feet.
LED HOUSING EKM-05
FEATURES
SPECIFICATION
FOR Ø3 3PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 3mm 3pin LED lamp.
- Right angle design with mount feet.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- BUILD-IN CLAMP FUNCTION
FOR Ø3 3PIN LED
| PART NO | A | B | C | D | E | F | G | H | PACKAGE |
| EKM-05 | 5.0 | 3.8 | 4.0 | 7.3 | 4.0 | 6.1 | 3.1 | 7.0 | 1000 |
