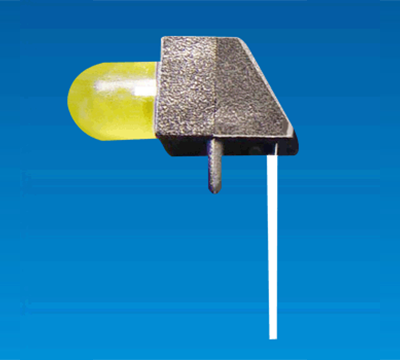

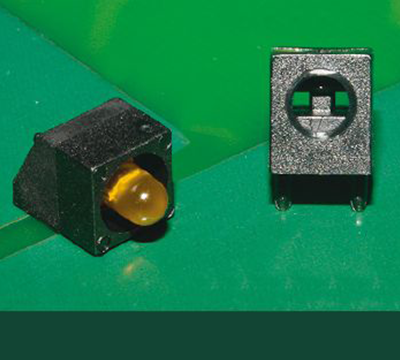

LED HOUSING LED-2C
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for both 5mm,3mm 2pin LED lamp.
- Right angle design with mount feet.
LED HOUSING LED-2C
FEATURES
SPECIFICATION
FOR Ø5, Ø3 2PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for both 5mm,3mm 2pin LED lamp.
- Right angle design with mount feet.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- BUILD-IN CLAMP FUNCTION
FOR Ø5, Ø3 2PIN LED
| PART NO | A | C | D | E | F | G | H | I | PACKAGE |
| LED-2C | 3.0 | Ø5.0 | Ø4.1 | 2.7 | 4.2 | 3.2 | 6.0 | 3.3 | 1000 |
| LED-2Y | 3.0 | Ø5.0 | Ø4.1 | 2.0 | 3.0 | 3.2 | 6.0 | 3.4 |
