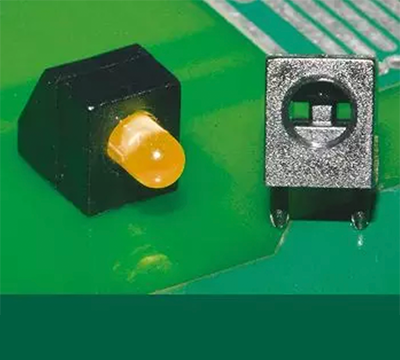

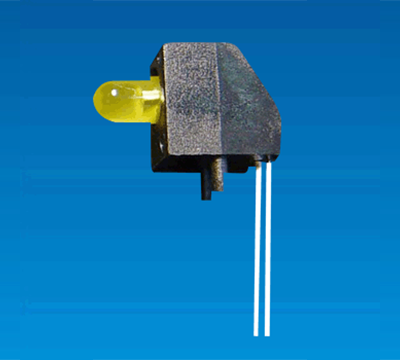

LED HOUSING LED-3Y
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 3mm 2pin LED lamp.
- Right angle design with mount feet.
LED HOUSING LED-3Y
FEATURES
SPECIFICATION
FOR Ø3 2PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 3mm 2pin LED lamp.
- Right angle design with mount feet.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- BUILD-IN CLAMP FUNCTION
FOR Ø3 2PIN LED
| PART NO | A | C | F | G | H | I | PACKAGE |
| LED-3Y | 4.0 | Ø4.1 | 1.4 | 2.5 | 7.0 | 3.3 | 1000 |
| LED-3YK | 4.0 | Ø3.3 | 1.4 | 2.5 | 7.0 | 3.3 | |
| LED-4Y | 3.0 | Ø4.1 | 1.4 | 1.5 | 6.0 | 3.3 |
