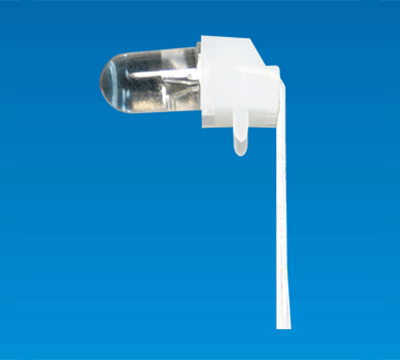

LED HOUSING LEK4-3T

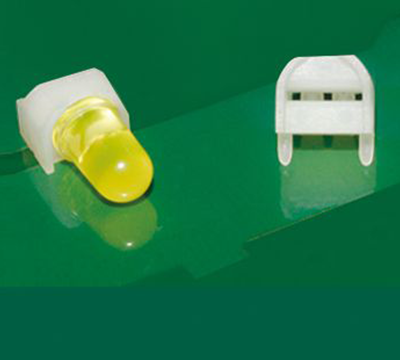

- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 3pin LED lamp.
LED HOUSING LEK4-3T
FEATURES
SPECIFICATION
FOR Ø5 3PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 3pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL, BLACK
FOR Ø5 3PIN LED
| PART NO | A | B | C | D | F | G | H | J | PACKAGE |
| LEK4-3T | 3.0 | 4.0 | 1.0 | 5.0 | 3.0 | 3.0 | Ø1.2 | 6.0 | 1000 |
| LEY-03 | 3.5 | 4.0 | 1.0 | 5.0 | 3.0 | 2.7 | Ø1.2 | 6.5 |
