Components & Accessories

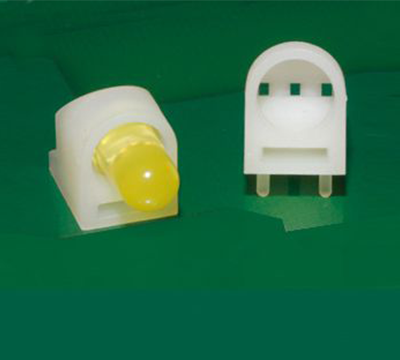

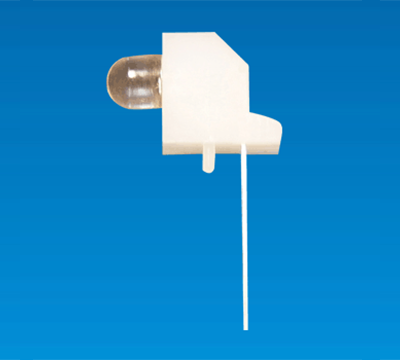

LED HOUSING LEU-06
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 3pin LED lamp.
LED HOUSING LEU-06
FEATURES
SPECIFICATION
MATERIAL: NYLON66 (UL)
FLAME CLASS: 94V-2
COLOR: NATURAL
BUILD-IN CLAMP FUNCTION
FOR Ø5 3PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 3pin LED lamp.
SPECIFICATION
MATERIAL: NYLON66 (UL)
FLAME CLASS: 94V-2
COLOR: NATURAL
BUILD-IN CLAMP FUNCTION
FOR Ø5 3PIN LED
| PART NO | A | B | C | D | E | F | G | PACKAGE |
| LEU-06 | 6.0 | 10.0 | Ø1.0 | 4.3 | 2.6 | 6.0 | Ø6.2 | 500 |
| LEU-09 | 9.0 | 13.0 | Ø1.2 | 3.5 | 2.5 | 5.5 | Ø6.0 | |
| LEU-10 | 10.0 | 14.0 | Ø1.0 | 4.0 | 2.6 | 5.5 | Ø6.0 |
