Components & Accessories

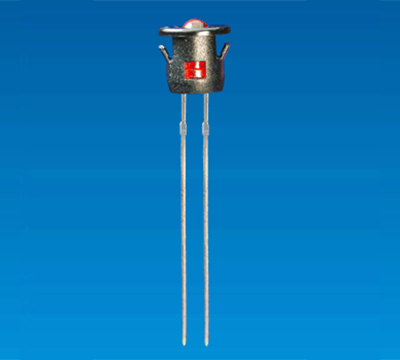

LED HOUSING MLED-3GS

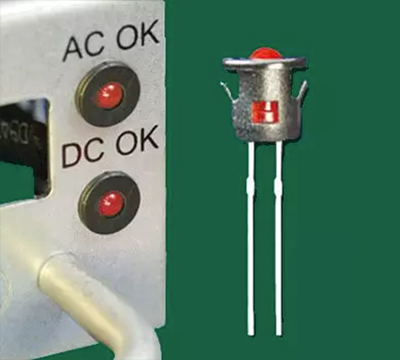

- To mount LED lamp on the panel.
- Suit for 3mm 2,3pin LED lamp.
LED HOUSING MLED-3GS
FEATURES
SPECIFICATION
FOR Ø3 2PIN or 3PIN LED
FEATURES
- To mount LED lamp on the panel.
- Suit for 3mm 2,3pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
FOR Ø3 2PIN or 3PIN LED
| PART NO | A | B | C | D | E | F | T | PACKAGE |
| MLED-3A | 5.3 | Ø6.0 | Ø5.2 | Ø3.0 | 2.4 | Ø3.2 | 0.6 | 2000 |
| MLED-3GS | 6.0 | Ø6.7 | Ø5.3 | Ø3.05 | 3.0 | Ø3.8 | 0.8 |
