LED Loading Dock Light-DC2120
LED Loading Dock Light
DC2120
- Using CREE LEDs, high lumens up to l 40LPW
- Safety yellow rugged cast aluminum housing
- Come with an on/off switch on the light head for easy operation High light transmittance PC cover
- Anti-corrosion stainless steel cage with good impact resistance High reliable constant current LED driver
- Available in multiple swing brackets optional
- ETL/cETL/FCC/CE/RoHS approved
Description
The led loading dock light is designed for a varietyof warehouse and work space conditions, led loading baydock lights used to illuminate the full length of truck trailers.
These dock light fixtures increase safety during loading and unloading.

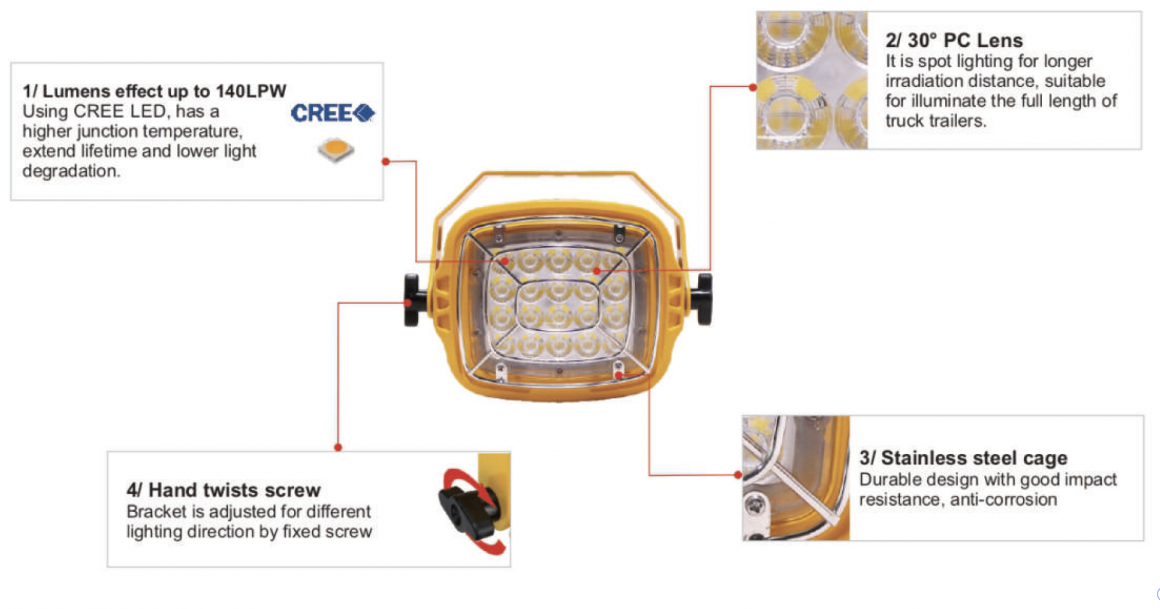

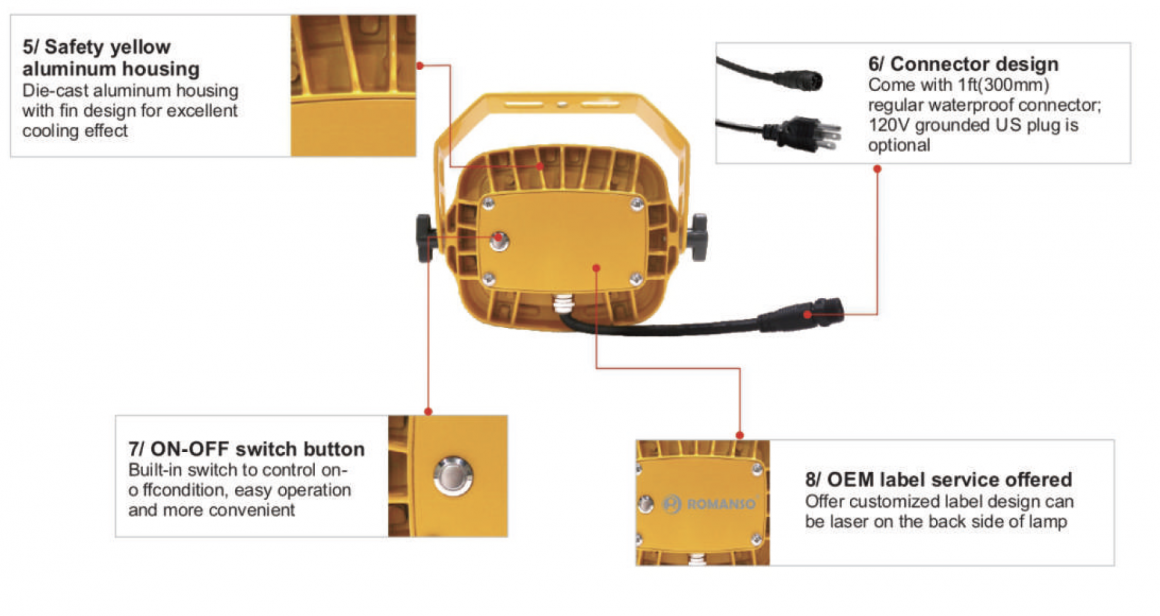

FEATURE
Using CREE LEDs, high lumens up to 140LPW
Safety yellow rugged cast aluminum housing
Come with an on/off switch on the light head for easy operation
High light transmittance PC cover
Anti-corrosion stainless steel cage with good impact resistance
High reliable constant current LED driver
Available in multiple swing brackets optional
ETL/cETL/FCC/CE/RoHS approved
Specification
| Model No. | Watt | Total Lumens | Dimension | Beam Angle | LED Brand | CCT | Input Voltage | CRI | Power Factor | IP Rating |
| DC2120 | 20W | 28001m士10% | ø219*163*70mm | 30 | CREE | 3000K 4000K 5000K 5700K 6500K |
AC100-277V, 50-60Hz |
≥70+ | ≥0.9 | IP65 |
| DC2130 | 30W | 42001m士10% | ||||||||
| DC2140 | 40W | 56001m士10% | ||||||||
| DC2150 | 50W | 70001m士10% |

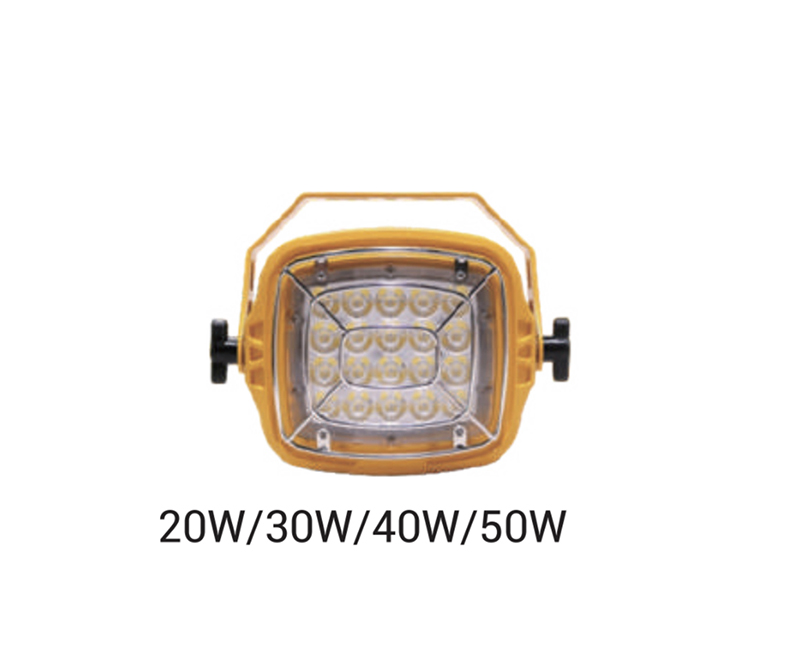

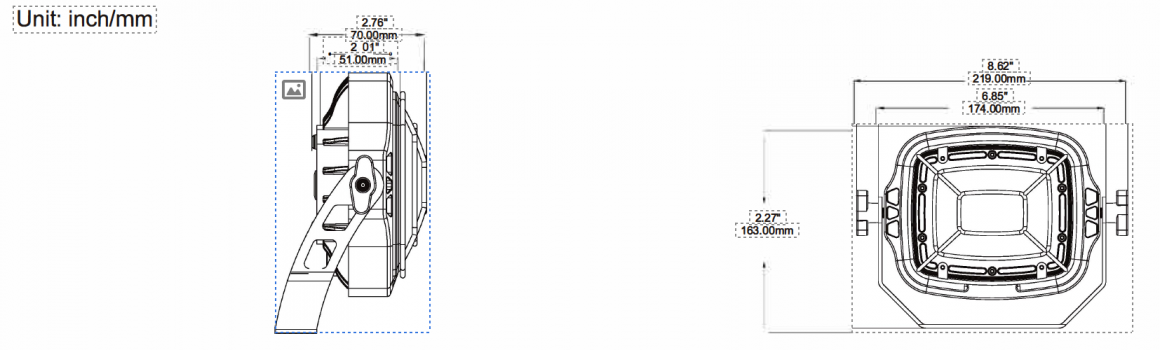

Dimension

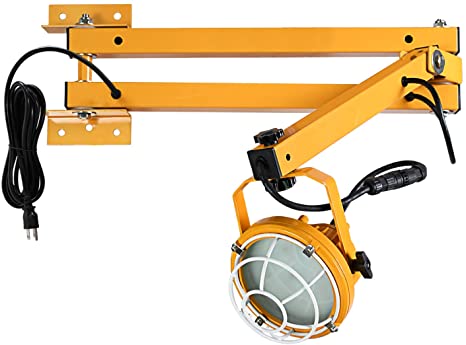

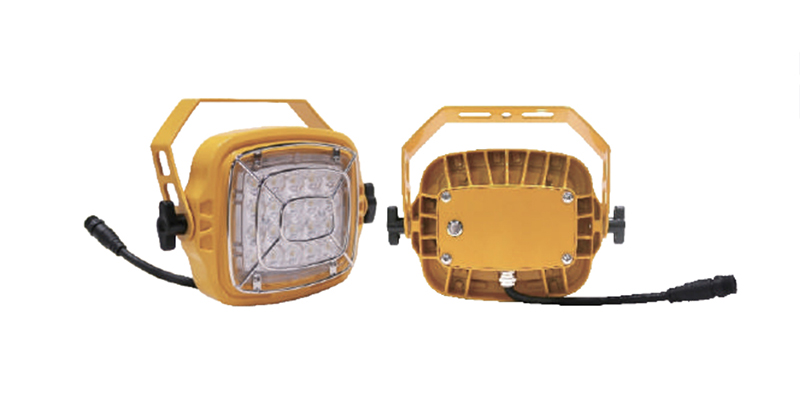

Product Display

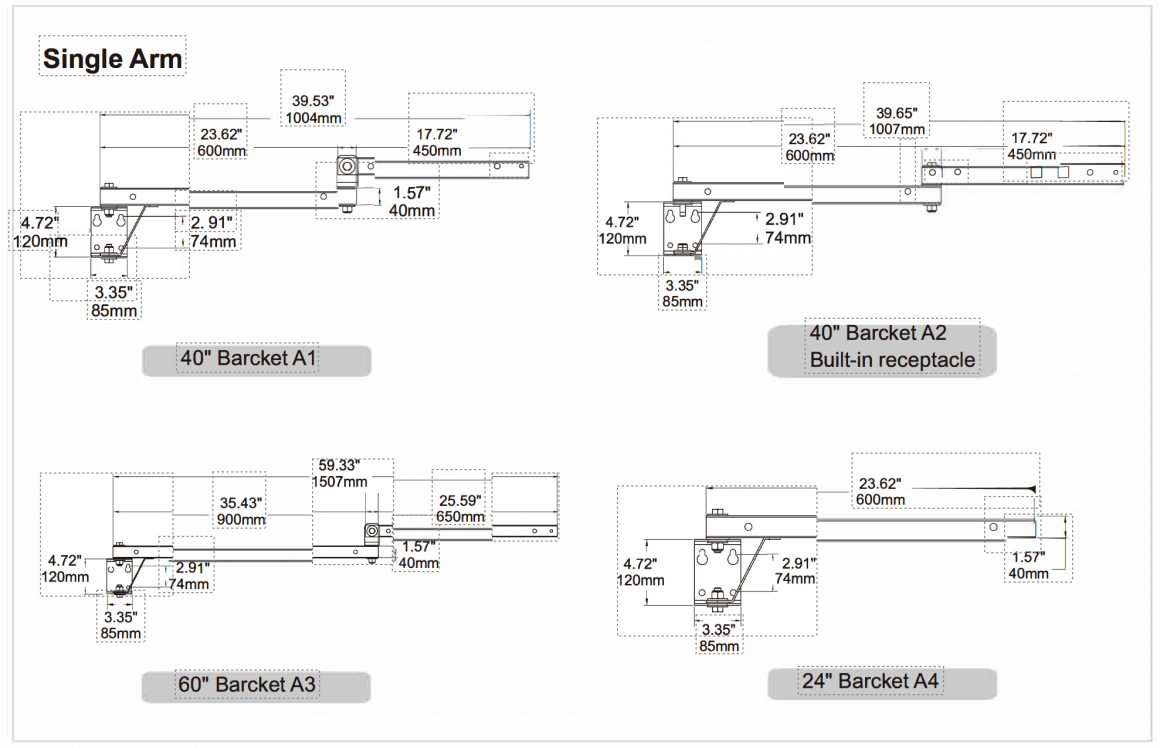

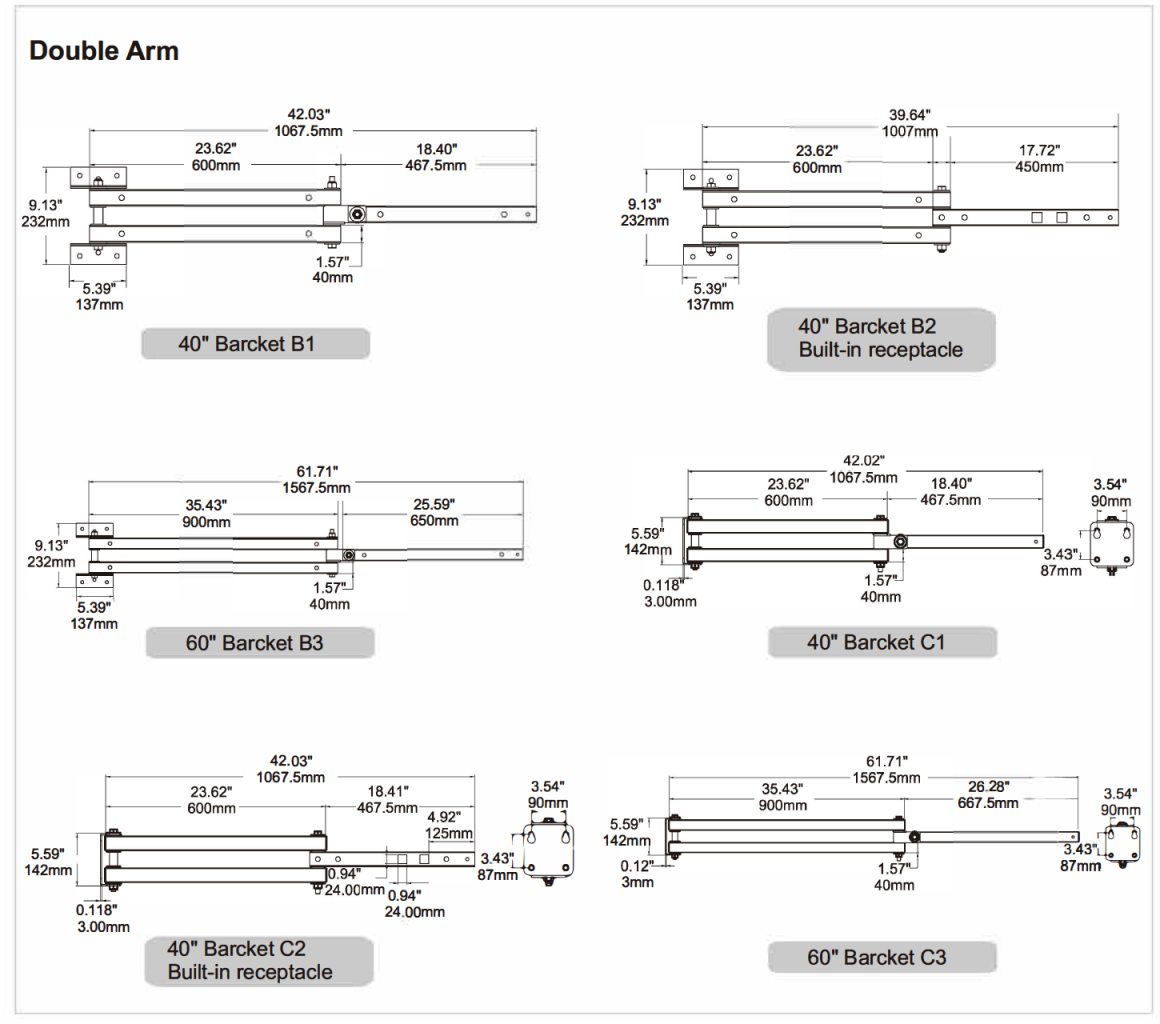

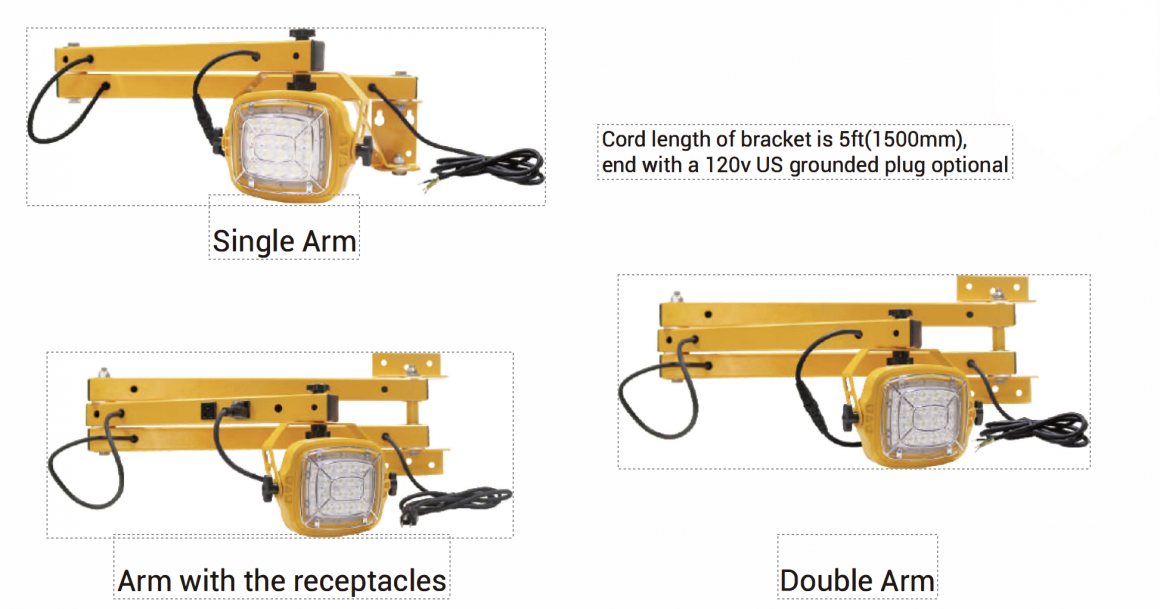

Bracket

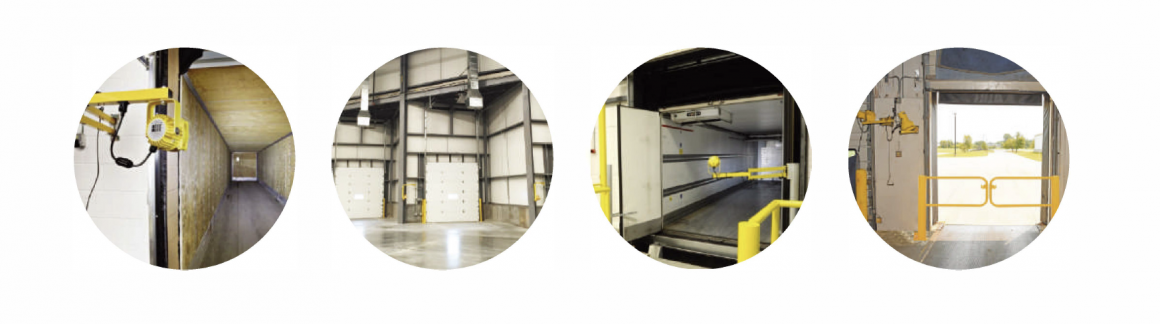

Application
Applications include shipping and receiving loading docks, machine stations such as a stomping press,
inspection stations, general work lighting, indoor and outdoor spot lighting, and other similar applications.
