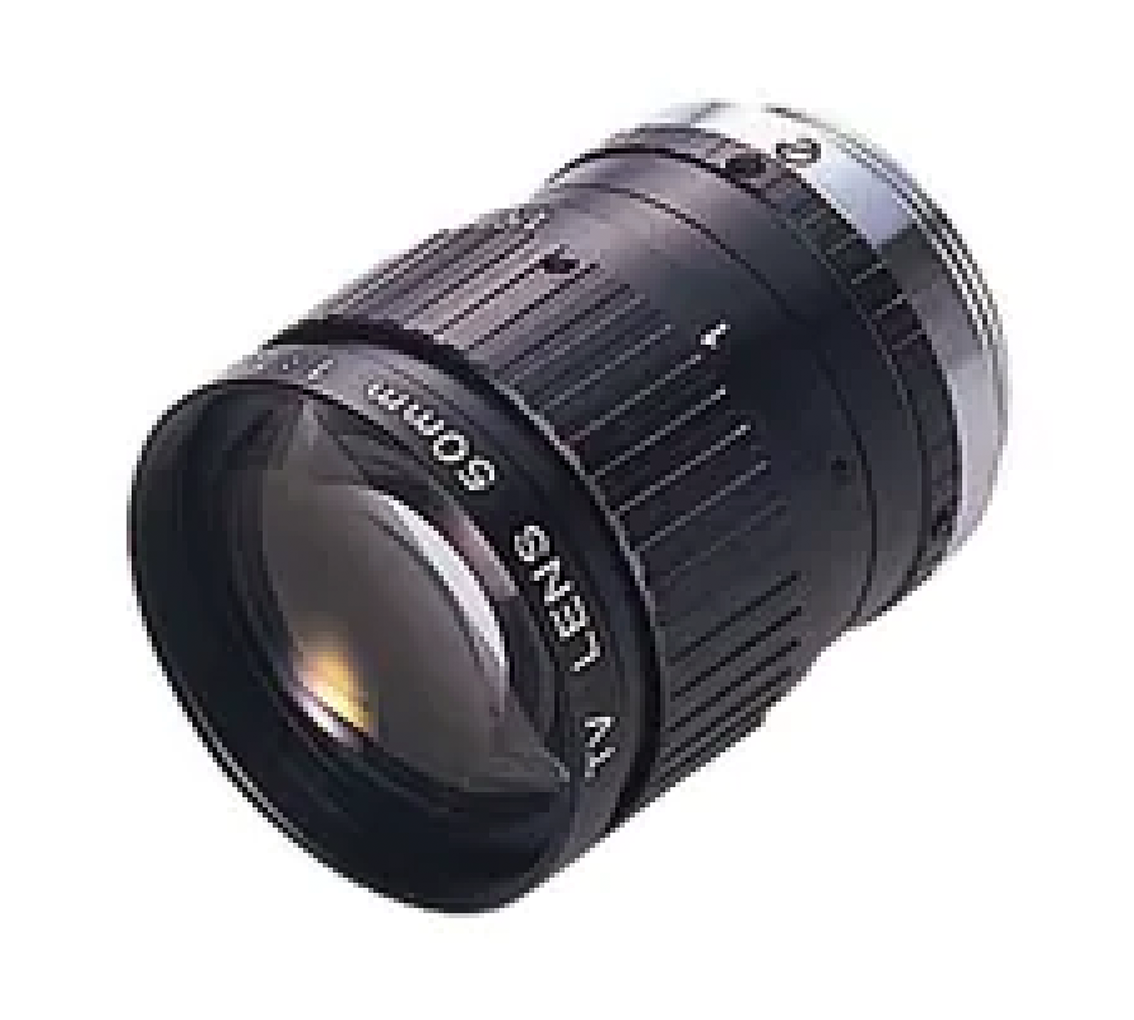

Lenses For Machine Vision CV-L50

Model

CV-L50

Focal point

50 mm 1.97"

F-stop range (aperture)

F1.6 to CLOSE

Minimum WD

1.0 m 3.3'

Mount

C-mount

Filter size

30.5 mm 1.20" P0.5

Compatible image sensor size

2/3"

TV distortion

-0.2 % (-0.1 %)^*1

Resolving power

100 cycles/mm at center, 40 cycles/mm on periphery

Ambient temperature/humidity range

0 to +50 °C 32 to 122°F, 35 to 80 % RH (No condensation)

Polarizing filter

OP-54030

Protective filter

CA-LF30

Weight

Approx. 50 g
