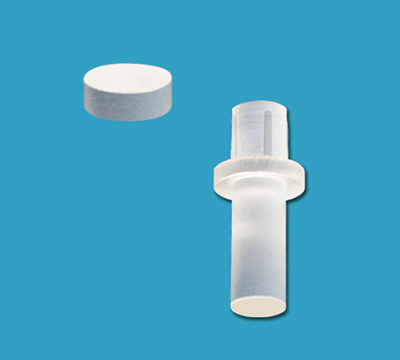

LIGHT PIPE LIGHT PIPE
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.

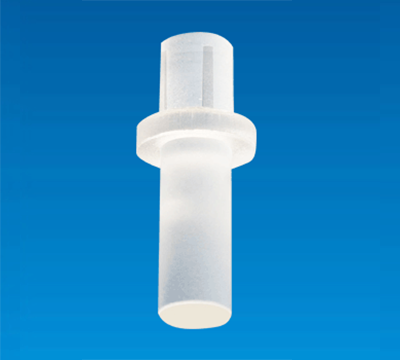

LIGHT PIPE LIGHT PIPE
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B | C | D HOLE IN CHASSIS |
E | F | G | T CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|
| LEHD-5Q | 1.4 | 1.3 | 3.8 | Ø3.0 | 2.8 | 2.3 | 2.6 | 1.4 | 2000 |
| LEHD-12F | 7.0 | 1.0 | 4.9 | Ø3.0 | 2.9 | 3.6 | 2.9 | 1.6 |
