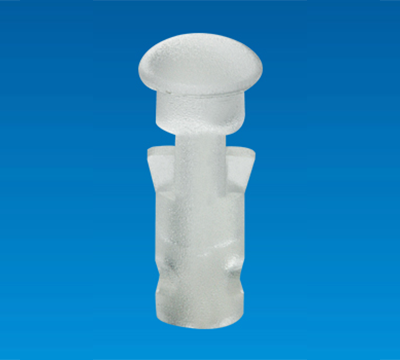

LIGHT TRANSPORTER EDN-3C
- Optical conductive fiber to lead LED or SMD light from source to panel.
- Easily snap the unit into the hole on panel to assemble.
- Free from the limitation of space,angle and distance of design for light source.

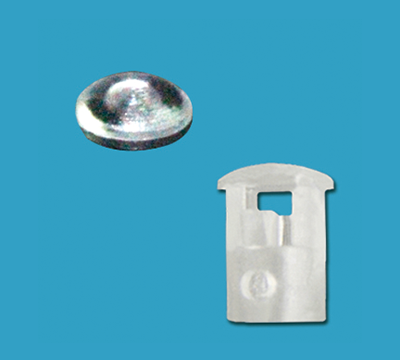

LIGHT TRANSPORTER EDN-3C
FEATURES
SPECIFICATION
FEATURES
- Optical conductive fiber to lead LED or SMD light from source to panel.
- Easily snap the unit into the hole on panel to assemble.
- Free from the limitation of space,angle and distance of design for light source.
SPECIFICATION
- MATERIAL: PC (UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B | D | E:HOLE IN CHASSIS |
T CHASSIS THICKNESS |
SUITABLE DIAMETER FIBER |
PACKAGE | |
|---|---|---|---|---|---|---|---|---|
| EDN-03 | 6.9 | Ø4.1 | 1.1 | Ø3.5 | 1.0 | Ø2.0 | 1000 |
