Mold Parts

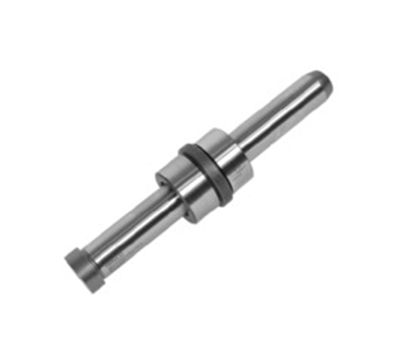

Linear ball bearing unit

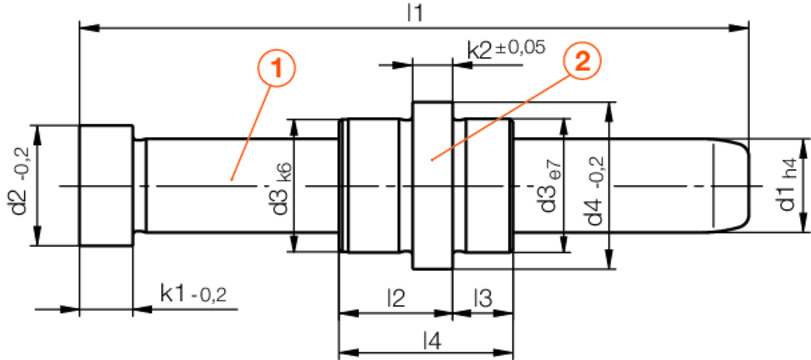

| Pos2 | Pos1 | k2 | k1 | l4 | d4 | d3 | d2 | d1 | l1 | l2 | l3 | Product |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z0100/12x80 | Z13/12x17x9 | 6 | 6 | 26 | 28 | 24 | 16 | 12 | 80 | 17 | 9 |
Z01003/12x80x17x9
|
| Z0100/12x80 | Z13/12x17x12 | 6 | 6 | 29 | 28 | 24 | 16 | 12 | 80 | 17 | 12 |
Z01003/12x80x17x12
|
| Z0100/12x100 | Z13/12x17x9 | 6 | 6 | 26 | 28 | 24 | 16 | 12 | 100 | 17 | 9 |
Z01003/12x100x17x9
|
| Z0100/12x100 | Z13/12x17x12 | 6 | 6 | 29 | 28 | 24 | 16 | 12 | 100 | 17 | 12 |
Z01003/12x100x17x12
|
| Z0100/12x120 | Z13/12x17x9 | 6 | 6 | 26 | 28 | 24 | 16 | 12 | 120 | 17 | 9 |
Z01003/12x120x17x9
|
| Z0100/12x120 | Z13/12x17x12 | 6 | 6 | 29 | 28 | 24 | 16 | 12 | 120 | 17 | 12 |
Z01003/12x120x17x12
|
| Z0100/12x140 | Z13/12x17x9 | 6 | 6 | 26 | 28 | 24 | 16 | 12 | 140 | 17 | 9 |
Z01003/12x140x17x9
|
| Z0100/12x140 | Z13/12x17x12 | 6 | 6 | 29 | 28 | 24 | 16 | 12 | 140 | 17 | 12 |
Z01003/12x140x17x12
|
| Z0100/12x160 | Z13/12x17x9 | 6 | 6 | 26 | 28 | 24 | 16 | 12 | 160 | 17 | 9 |
Z01003/12x160x17x9
|
| Z0100/12x160 | Z13/12x17x12 | 6 | 6 | 29 | 28 | 24 | 16 | 12 | 160 | 17 | 12 |
Z01003/12x160x17x12
|
