Mold Parts

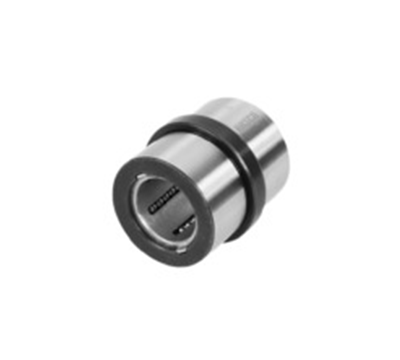

Linear ball bearing
| k1 | l1 | d4 | d3 | d1 | l2 | l3 | Product |
|---|---|---|---|---|---|---|---|
| 6 | 21 | 24 | 20 | 10 | 12 | 9 |
Z13/10x12x9
|
| 6 | 26 | 24 | 20 | 10 | 17 | 9 |
Z13/10x17x9
|
| 6 | 26 | 28 | 24 | 12 | 17 | 9 |
Z13/12x17x9
|
| 6 | 29 | 28 | 24 | 12 | 17 | 12 |
Z13/12x17x12
|
| 6 | 34 | 36 | 32 | 18 | 22 | 12 |
Z13/18x22x12
|
| 6 | 39 | 36 | 32 | 18 | 22 | 17 |
Z13/18x22x17
|
| 6 | 29 | 43 | 39 | 24 | 17 | 12 |
Z13/24x17x12
|
| 6 | 44 | 43 | 39 | 24 | 27 | 17 |
Z13/24x27x17
|
| 6 | 49 | 43 | 39 | 24 | 27 | 22 |
Z13/24x27x22
|
| 6 | 39 | 54 | 50 | 30 | 22 | 17 |
Z13/30x22x17
|
| 6 | 54 | 54 | 50 | 30 | 32 | 22 |
Z13/30x32x22
|
| 6 | 63 | 54 | 50 | 30 | 36 | 27 |
Z13/30x36x27
|
| 6 | 39 | 60 | 56 | 36 | 22 | 17 |
Z13/36x22x17
|
| 6 | 39 | 74 | 70 | 48 | 22 | 17 |
Z13/48x22x17
|
