    Sensor

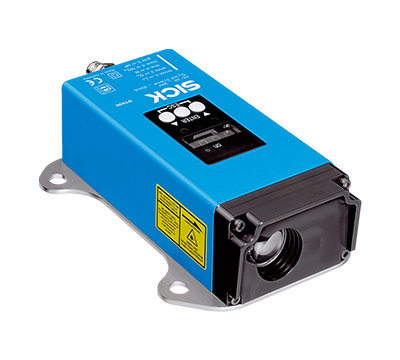

    Long range distance sensors Sick Dx500 / DS500

    Type:DS500-N111
    Part No.:1026521

    Mechanics/electronics
    Supply voltage Vs

    DC 10 V ... 30 V, reverse polarity protected

    UV ≥ DC 24 V for devices with heating

    Ripple 5 Vpp 1)
    Power consumption Typ. 3 W
    Initialization time 500 ms
    Housing material Metal (Aluminum die cast)
    Window material Glass
    Connection type Male connector, M12, 5-pin
    Weight 1,000 g
    Dimensions (W x H x D) 69 mm x 50 mm x 153 mm
    Enclosure rating IP65
    Protection class II 2)
    • 1) May not fall short of or exceed VS tolerances.
    • 2) Reference voltage DC 32 V.

    Performance
    Measuring range

    0.2 m ... 30 m, 90 % remission 1) 2)

    0.8 m ... 15 m, 6 % remission 1) 2)

    Target Natural objects
    Resolution ≤ 1 mm
    Repeatability 1 mm
    Accuracy ± 3 mm
    Response time 250 ms
    Output time 250 ms
    Light source Laser, red 3)
    visible red light
    Laser class 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
    Typ. light spot size (distance)

    10 mm (at 7 m)

    45 mm (at 30 m)

    100 mm (at 70 m)

    • 1) In ambient light, max. 1 klx of constant light.
    • 2) Unique up to 150 m.
    • 3) Average service life of 50,000 h at TA = +25 °C.

    Interfaces
    Digital output
    Number 2 1)
    Type NPN / NPN
    Maximum output current IA ≤ 100 mA
    Multifunctional input (MF) < 2 V 2) 3)
    Hysteresis ± 6 %
    • 1) PNP: HIGH = VS - (< 2.5 V) / LOW = < 2.5 V; NPN: HIGH = < 2.5 V / LOW = VS.
    • 2) Refer to function MF input.
    • 3) NPN < 2 V.

    Ambient data
    Electromagnetic compatibility (EMC)

    EN 61000-6-2, EN 55011

    EN 60947-5-7: 2003-9

    Ambient temperature, operation

    –10 °C ... +45 °C

    –10 °C ... +75 °C, operation with cooling case

    Ambient temperature, storage –25 °C ... +75 °C
    Temperature drift Typ. 0.05 mm/K
    Typ. Ambient light immunity ≤ 3,000 lx
    Mechanical load

    Shock: (EN 600 68-2-27)

    Sine: (EN 600 68-2-6)

    Noise: (EN 600 68-2-64)


    Classifications
    ECl@ss 5.0 27270801
    ECl@ss 5.1.4 27270801
    ECl@ss 6.0 27270801
    ECl@ss 6.2 27270801
    ECl@ss 7.0 27270801
    ECl@ss 8.0 27270801
    ECl@ss 8.1 27270801
    ECl@ss 9.0 27270801
    ECl@ss 10.0 27270801
    ECl@ss 11.0 27270801
    ETIM 5.0 EC001825
    ETIM 6.0 EC001825
    ETIM 7.0 EC001825
    ETIM 8.0 EC001825
    UNSPSC 16.0901 41111613
