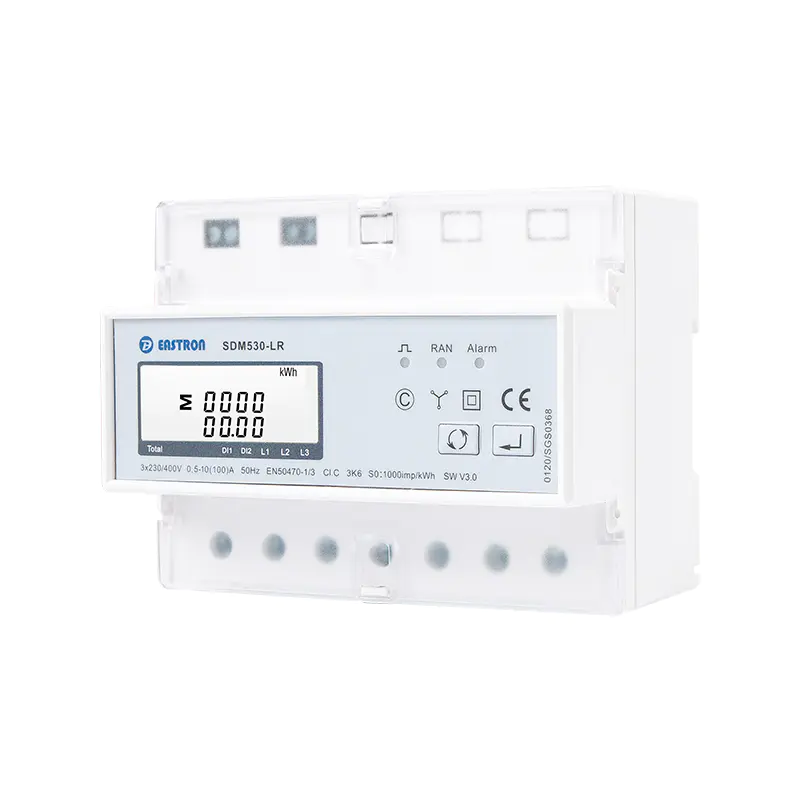

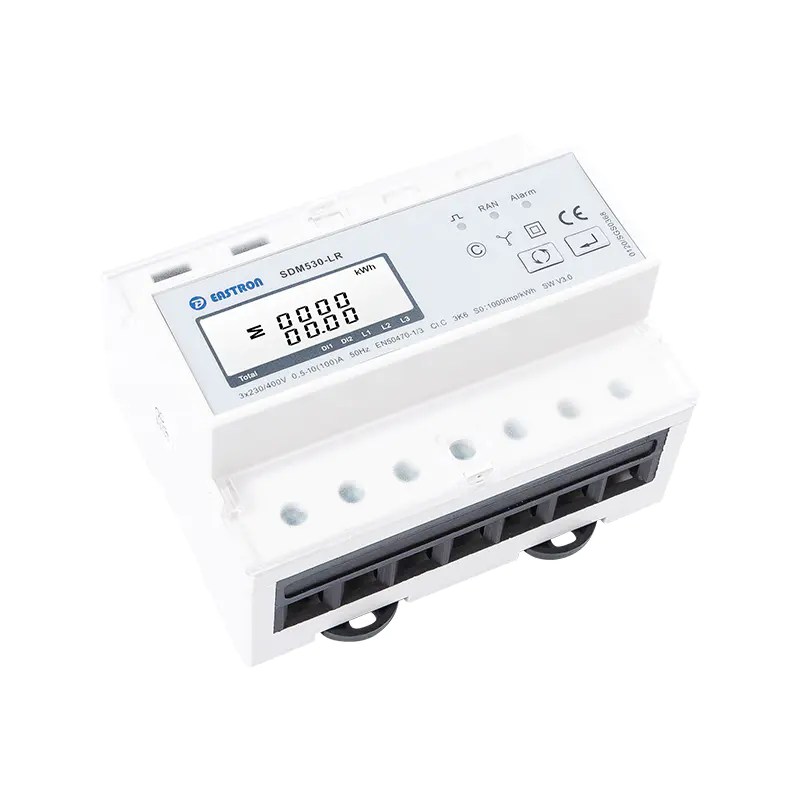

Lorawan Type Remote Control Three Phase Multi-function Energy Meter Eastron SDM530-LR
- LoraWAN communication
- Built-in Relay for Remote Power Control
- Multi-parameter measurement
- 26 Alarm values
- Class 0.5s High Auucracy
- Output for Energy Pulse Emission
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on three phase AC system (3P+N) |
|
|
Measurement Accuracy |
Power |
0.5% of range maximum |
|
Active Energy |
IEC 62053-22 Class 0.5s |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current |
Rated Current |
10A |
|
Max Current |
100A |
||
|
Min Current |
0.55A |
||
|
Starting Current |
40mA |
||
|
Voltage |
Rated Voltage (Un) |
230V |
|
|
Operational Voltage |
80%~120% of Un |
||
|
SDM530-LR |
Pulse Output + LoraWAN |
||
|
LoRaWAN Communications |
|
|
Communication Frequency |
EU868/ AS923/ AU915/ US915, etc. |
