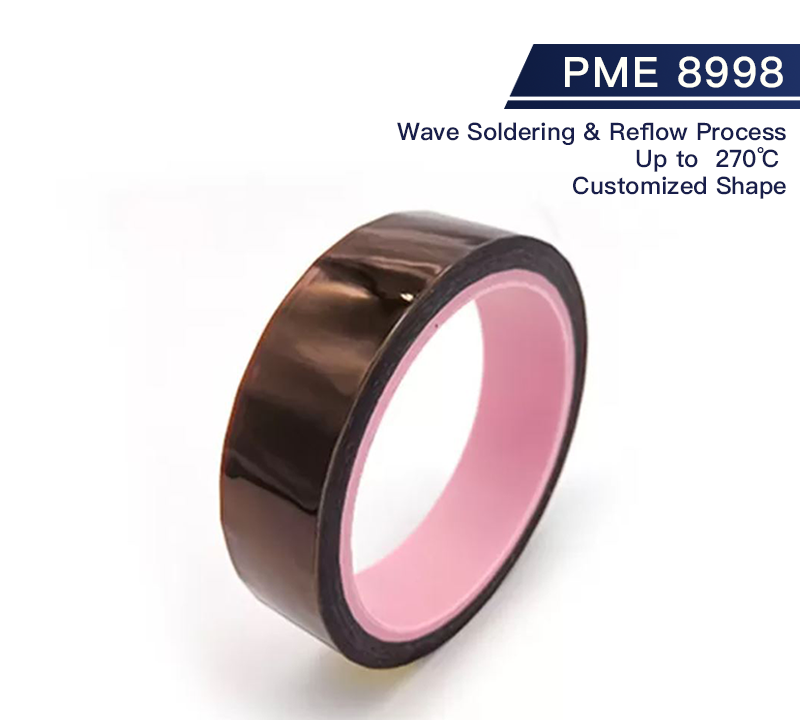

Low Static Polyimide Film Tape
- PME 8998 is polyimide tape with a silicone adhesive meant to withstand heat during high-temperature masking operations.
- It offers excellent thermal, chemical and abrasion resistance. It seals tight on contact and peels off clean at up to 270°C.
- Masking for wave soldering & reflow process
- Golden finger masking
- Masking parts for powder coating
- Masking edges of overlap seams
- Barrier of separation for dissimilar metals
Features
- Ideal for high temperature applications
- Excellent thermal, chemical and abrasion resistance
- Low electrostatic discharge
- Excellent tensile strength & Elongation.
- Customized shape is available
- RoHS Compliant.
Typical Physical Properties and Performance Characteristics
|
Product polyimide film tape |
Units |
Test values |
|
Backing Thickness: |
mm |
0.075 |
|
Total Tape Thickness: |
mm |
0.09±0.005 |
|
Adhesion to Steel: |
N/25mm |
3~4N |
|
Tensile Strength at Break: |
KN/M |
≥8 |
|
Elongation at Break: |
% |
≥50% |
|
Upmost Temperature |
° C |
270 |
|
Surface Resistance |
ohms |
105~9ohms |
|
Static Discharge(Removal from roll) |
Voltage |
<100V |
Product Construction/Material Description
|
Part No |
Description |
Length/m |
Width/mm |
|
PME89980333 |
Low Static Polyimide Film Tape |
33 |
3 |
|
PME89980433 |
Low Static Polyimide Film Tape |
33 |
4 |
|
PME89980533 |
Low Static Polyimide Film Tape |
33 |
5 |
|
PME89980733 |
Low Static Polyimide Film Tape |
33 |
7 |
|
PME89980933 |
Low Static Polyimide Film Tape |
33 |
9 |
|
PME89981033 |
Low Static Polyimide Film Tape |
33 |
10 |
|
PME89981233 |
Low Static Polyimide Film Tape |
33 |
12 |
|
PME89981433 |
Low Static Polyimide Film Tape |
33 |
14 |
|
PME89981533 |
Low Static Polyimide Film Tape |
33 |
15 |
|
PME89981733 |
Low Static Polyimide Film Tape |
33 |
17 |
|
PME89981933 |
Low Static Polyimide Film Tape |
33 |
19 |
|
PME89982033 |
Low Static Polyimide Film Tape |
33 |
20 |
|
PME89982233 |
Low Static Polyimide Film Tape |
33 |
22 |
|
PME89982533 |
Low Static Polyimide Film Tape |
33 |
25 |
|
PME89983033 |
Low Static Polyimide Film Tape |
33 |
30 |
|
PME89984033 |
Low Static Polyimide Film Tape |
33 |
40 |
|
PME89985033 |
Low Static Polyimide Film Tape |
33 |
50 |
