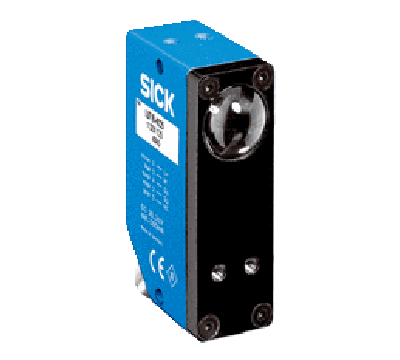

    Luminescence sensors SICK LUT1

    Type:LUT1B-41235
    Part no.:1024126
    Features
    Dimensions (W x H x D) 23 mm x 70 mm x 60 mm
    Sensing distance 150 mm 1)
    Housing design (light emission) Rectangular
    Working range 60 mm ... 160 mm
    Light source LED, blue 2)
    Wave length 470 nm
    Light emission Long side
    Light spot size 6 mm x 14 mm
    Receiving filters OG 590
    Receiving range 590 nm ... 750 nm
    Adjustment Double teach-in button
    Output function Light switching
    • 1) From front edge of lens.
    • 2) Average service life: 100,000 h at TU = +25 °C.

    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC 1)
    Ripple < 5 Vpp 2)
    Current consumption < 40 mA 3)
    Switching frequency 600 Hz 4)
    Response time 850 µs 5)
    Switching output PNP
    Switching output (voltage) PNP: HIGH = VS– ≤ 2 V / LOW approx. 0 V
    Switching mode Light switching 6)
    Output current Imax. 200 mA
    Connection type Male connector M12, 5-pin
    Protection class III 7)
    Circuit protection

    UV connections, reverse polarity protected

    Output Q short-circuit protected

    Interference pulse suppression

    Enclosure rating IP67
    Weight 240 g
    Housing material Metal, zinc diecast
    • 1) Limit values when operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) With light/dark ratio 1:1, without timer stage.
    • 5) Signal transit time with resistive load.
    • 6) Control output.
    • 7) Reference voltage DC 50 V.

    Communication interface
    Communication interface -


    Ambient data
    Ambient operating temperature –20 °C ... +60 °C
    Ambient storage temperature –40 °C ... +70 °C
    Shock load According to IEC 60068


    Classifications
    ECl@ss 5.0 27270908
    ECl@ss 5.1.4 27270908
    ECl@ss 6.0 27270908
    ECl@ss 6.2 27270908
    ECl@ss 7.0 27270908
    ECl@ss 8.0 27270908
    ECl@ss 8.1 27270908
    ECl@ss 9.0 27270908
    ECl@ss 10.0 27270908
    ECl@ss 11.0 27270908
    ETIM 5.0 EC001822
    ETIM 6.0 EC001822
    ETIM 7.0 EC001822
    UNSPSC 16.0901 39121528
