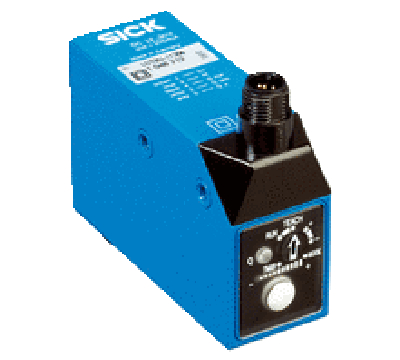

    Luminescence sensors SICK LUT8

    Type:LUT8U-11201
    Part no.:1047042
    Features
    Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm
    Sensing distance 20 mm 1)
    Housing design (light emission) Rectangular
    Working range 10 mm ... 40 mm
    Light source LED, Ultraviolet light 2)
    Wave length 375 nm
    Light emission Long side
    Light spot size 3 mm x 9 mm
    Light spot direction Vertical
    Receiving filters KV 418 (standard)
    Receiving range 450 nm ... 750 nm
    Adjustment Manual (rotary switch)
    Output function Light switching
    • 1) From front edge of lens.
    • 2) Average service life: 100,000 h at TU = +25 °C.

    Mechanics/electronics
    Supply voltage 12 V DC ... 30 V DC 1)
    Ripple < 5 Vpp 2)
    Current consumption < 100 mA 3)
    Switching frequency 2.5 kHz 4)
    Response time 200 µs 5)
    Switching output PNP, NPN
    Switching output (voltage)

    PNP: HIGH = VS– ≤ 3 V / LOW = approx. 0 V

    NPN: HIGH = approx. VS / LOW ≤ 2 V

    Switching mode Light switching
    Analog output 0 mA ... 13 mA
    Output current Imax. 100 mA
    Connection type Male connector M12, 5-pin
    Protection class II 6)
    Circuit protection

    UV connections, reverse polarity protected

    Output Q short-circuit protected

    Interference pulse suppression

    Enclosure rating IP67
    Weight 400 g
    Housing material Metal, zinc diecast
    • 1) Limit values when operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) With light/dark ratio 1:1.
    • 5) Signal transit time with resistive load.
    • 6) Reference voltage DC 50 V.

    Ambient data
    Ambient operating temperature –10 °C ... +55 °C
    Ambient storage temperature –25 °C ... +75 °C
    Shock load According to IEC 60068
